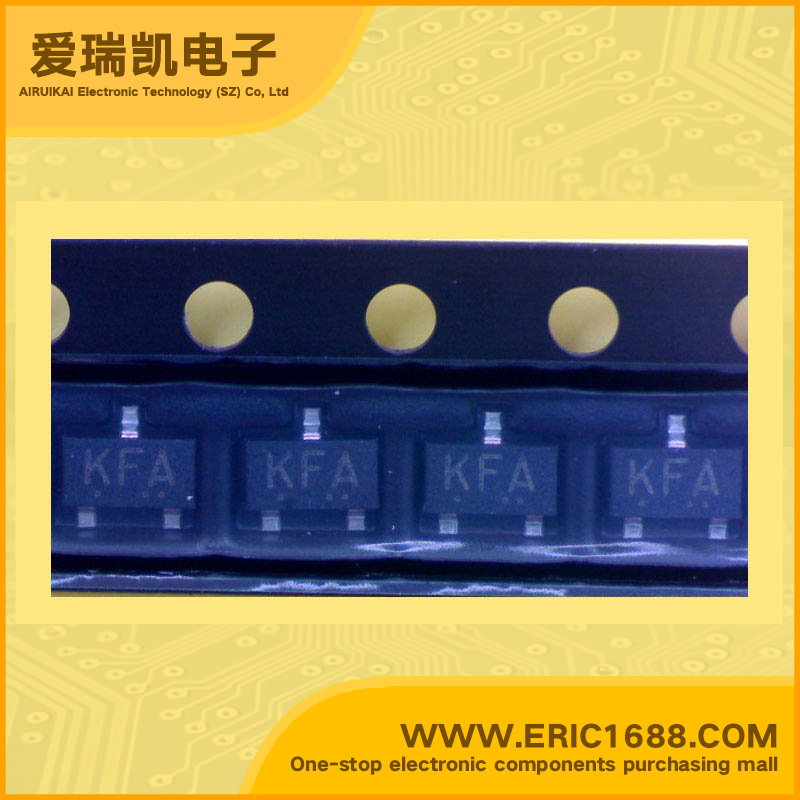

SSM3J321T MOSFET P-Channel -20V -5.2A 0.037ohm SOT-23 marking KFA power managementswitch high-speed switch 1.8V drive low on-resistance
| 最大源漏极电压Vds Drain-Source Voltage | -20V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 8V |
| 最大漏极电流Id Drain Current | -5.2A/-0.2A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 0.037Ω @-3A,-4.5V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | -0.3--1.0V |
| 耗散功率Pd Power Dissipation | 700mW/0.7W |
| Description & Applications | Power Management Switch Applications High-Speed Switching Applications • 1.5V drive • Low ON-resistance: Ron = 137mΩ (max) (@VGS = -1.5 V) Ron = 88mΩ (max) (@VGS = -1.8 V) Ron = 62mΩ (max) (@VGS = -2.5 V) Ron = 46mΩ (max) (@VGS = -4.5 V) |
| 描述与应用 | 电源管理开关应用 高速开关应用 •1.5V驱动 •低导通电阻：RON =137mΩ（最大）（@ VGS=-1.5 V） 罗恩=88mΩ（最大）（@ VGS=-1.8 V） 罗恩=62mΩ（最大）（@ VGS= -2.5 V） 罗恩=46mΩ（最大）（@ VGS= -4.5 V） |
