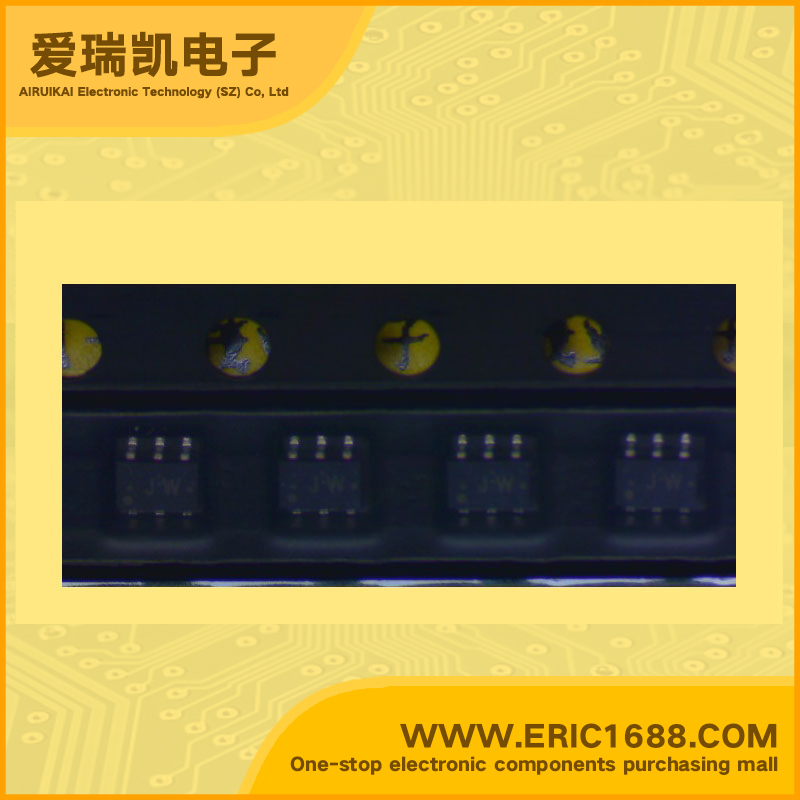

TC7SB3157CFU Integrated Circuit (IC) Logic Signal Switch, Multiplexer, Decoder IC MUX / DEMUX SGL 1: 2 US6
逻辑类型 Logic Type |
多路复用器/多路分解器 Multiplexer/Demultiplexer |
电路数 Number of Circuits |
1 x 2:1 |
输入数 Number of Inputs |
1 |
电源电压Vcc Voltage - Supply |
|
静态电流Iq Current - Quiescent (Max) |
单电源 Single Supply |
输出高,低电平电流 Current - Output High, Low |
1.65 V ~ 5.5 V |
低逻辑电平 Logic Level - Low |
The TC7SB3157CFU is a high-speed CMOS single 1-of-2 multiplexer/demultiplexer. The low ON resistance of the switch allows connections to be made with minimal propagation delay time.This device is 1 to 2 multiplexer/demultiplexer controlled by the select input (S). The A input is connected to B1or B2 output based on the selection of Control input (S).All inputs are equipped with protection circuits against static discharge. Operating voltage: VCC = 1.65 to 5.5 V ON capacitance: CI/O = 15 pF Switch On (typ.) @VCC = 5.0 V ON resistance: RON = 4 Ω (typ.) @VCC = 4.5 V, VIS = 0 V ESD performance: Machine model ≥ ±200 V, Human body model ≥ ±2000 V Package: US6 |
高逻辑电平 Logic Level - High |
TC7SB3157CFU是一个高速CMOS单1-2复用器/多路分解器。允许以最小的传播延迟时间连接到的低导通电阻的开关。这个设备是被选择输入(S)所控制的1〜2多路复用器/多路分解器。A输入连接到B1或B2输出的基于控制输入(S)的选择。所有输入都配有保护电路防止静电放电 工作电压:VCC= 1.65至5.5 V 导通电容:CI/O=15 PF开关(典型值)@ VCC= 5.0 V 导通电阻RON=4Ω(典型值)@ VCC= 4.5 V,VIS =0 V ESD性能:机器型号≥±200 V,人体模式≥±2000 V 包装:US6 |
传播延迟时间@Vcc,CL Max Propagation Delay @ V, Max CL |
|
