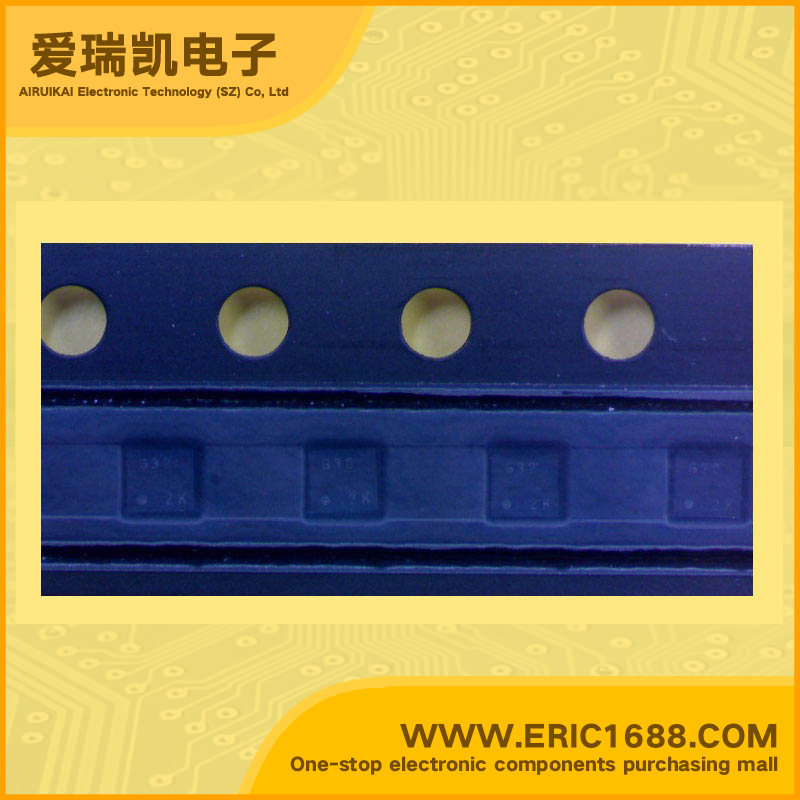

TC7WG32FC
| 逻辑类型 Logic Type |
或门 OR Gate |
| 电路数 Number of Circuits |
1 |
| 输入数 Number of Inputs |
2 |
| 电源电压Vcc Voltage - Supply |
0.9V~3.6V |
| 静态电流Iq Current - Quiescent (Max) |
1µA |
| 输出高，低电平电流 Current - Output High, Low |
-8mA,8mA |
| 低逻辑电平 Logic Level - Low |
0.7V~0.8V |
| 高逻辑电平 Logic Level - High |
0.9V~2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL |
2.8ns @ 3.3V，15pF |
| Description & Applications | Dual 2-Input OR Gate ;High output current : ±8 mA (min) at VCC = 3 V • Super high speed operation: tpd = 2.8 ns (typ.) at VCC = 3.3 V,15pF • Operating voltage range : VCC = 0.9 to 3.6 V • 5.5-V tolerant inputs • 3.6-V power down protection outputs |
| 描述与应用 | 双2输入或门;•高输出电流：±8 mA（分钟）在VCC =3 V •超高速运转：TPD =4.0 ns（典型值） 在VCC =3.3 V，15PF •工作电压范围：VCC= 0.9到3.6 V •5.5-V宽容输入 •3.6-V断电保护输出 |
