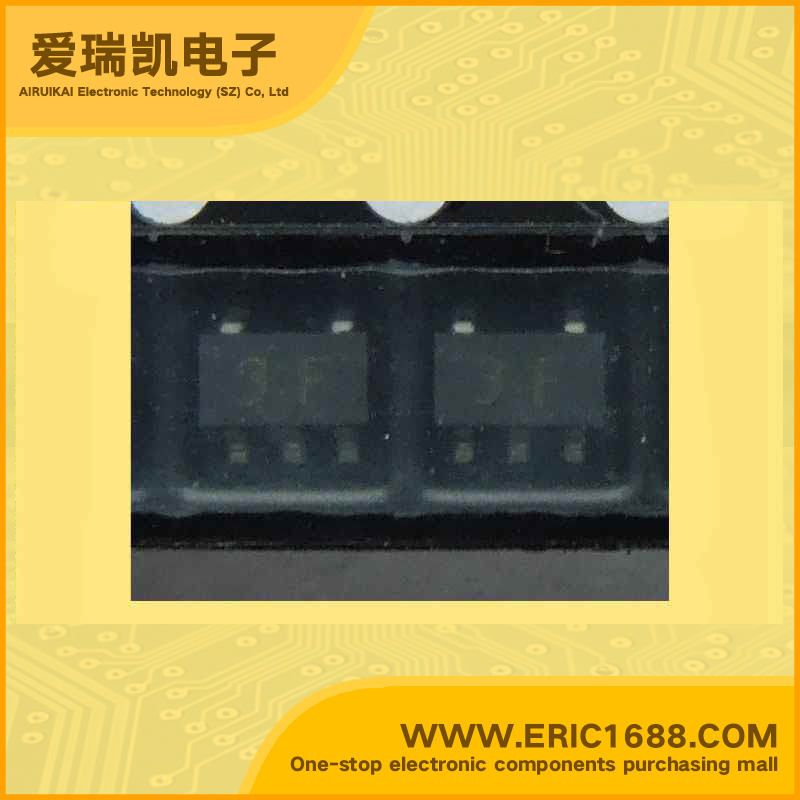

TA76433FC Voltage Reference Power Management IC 1.26V~14V SOT-153/SMV/SOT23-5 marking 3F Adjustable High-Precision shunt regulator

Hot selling goods

Product description
参考类型
Reference Type
输出电压Vo
Voltage - Output
1.26V~14V
误差
Tolerance
±1.4%
温度系数
Temperature Coefficient
输入电压
Voltage - Input
1.26V~14V
阴极电流
Current - Cathode
400µA
输出电流IOUT
Current - Output
15mA
Description & ApplicationsFEATURES • TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic • High-Precision Shunt Regulators with Adjustable Output Voltage • Separate power supply input pin (VCC) and cathode pin (K) • Precision reference voltage: VREF = 1.26 V ± 1.4% (Ta = 25ºC) • Maximum cathode voltage: 15 V • Maximum cathode current: 20 mA • Cathode voltage: 0.2 to 14 V • Cathode current: 0.4 to 20 mA • Operating temperature: Ta = −40 to 85ºC • Packages: SMV can be mounted on a 3.1 × 3.0 mm space.
描述与应用特点 •东芝双极型线性集成电路硅单片 •可调输出电压的高精密并联稳压器 •单独的电源输入脚(VCC)和阴极针(K) •精密参考电压VREF= 1.26 V±1.4%(大= 25ºC) •最大阴极电压:15 V •最大阴极电流:20mA •阴极电压:0.2到14 V •阴极电流:0.4到20 mA •工作温度:TA=-40至85ºC •软件包:SMV可以安装在一个3.1×3.0毫米的空间。
