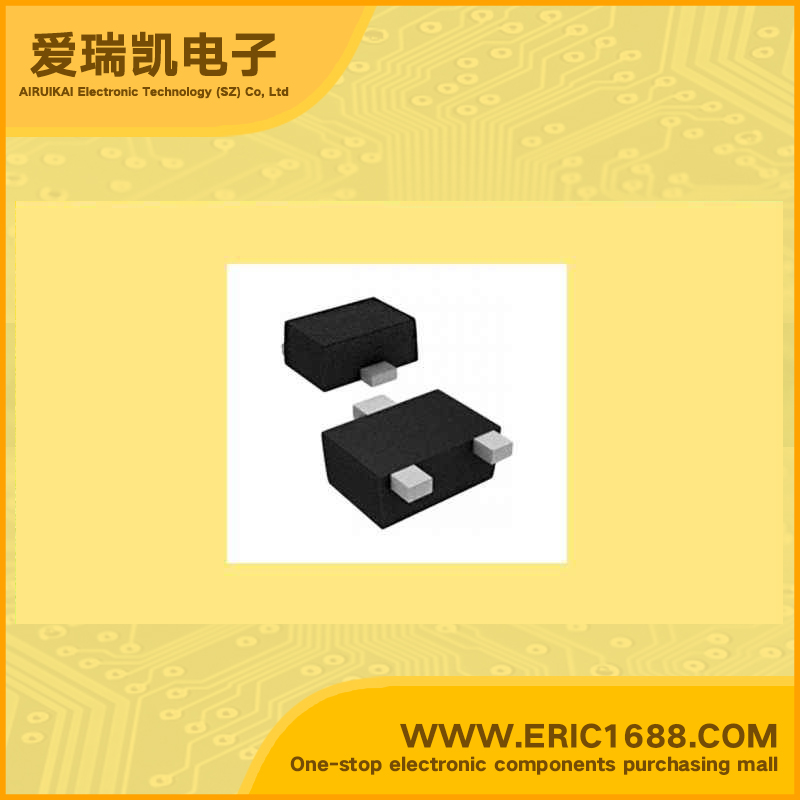

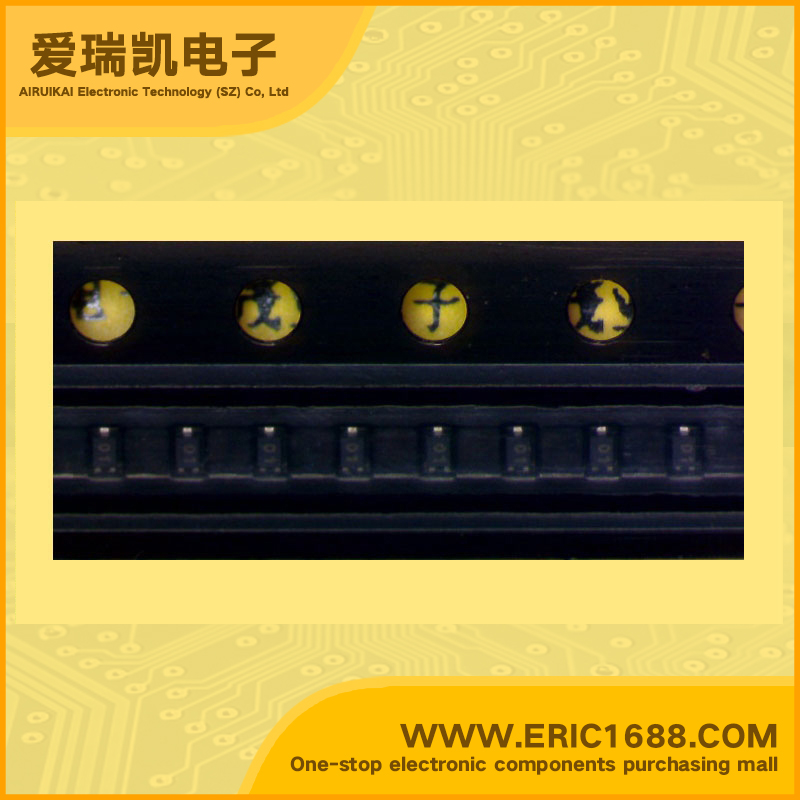

MT3S04AFS NPN 10V 7GHZ SOT723 MARKING 01
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
10V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
5V |
| 集电极连续输出电流IC Collector Current(IC) |
40MA |
| 截止频率fT Transtion Frequency(fT) |
5GHz~7GHz |
| 直流电流增益hFE DC Current Gain(hFE) |
80~160 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc Power Dissipation |
85MW |
| Description & Applications | VHF~UHF Band Low-Noise Amplifier Applications VHF~UHF Band Oscillator/Buffer Applications Superior performance in oscillator applications . Superior noise characteristics : NF = 1.3 dB, |S21e| 2 = 9.5 dB (f = 1 GHz) |
| 描述与应用 | VHF?UHF频段低噪声放大器应用 .VHF?UHF频带振荡器/缓冲器应用. 振荡器应用中的卓越性能 .高级噪声特性 ：NF= 1.3分贝，S21E| 2 = 9.5分贝（= 1千兆赫） |
