| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 29V |
| 输出电压VOUT Voltage - Output | 15V |
| 输出电流Io Current - Output | 250mA/0.25A |
| 最大压降VDO Voltage - Dropout | 0.4V/400mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 yes |
| 最大耗散功率Pd Power dissipation | 1w |

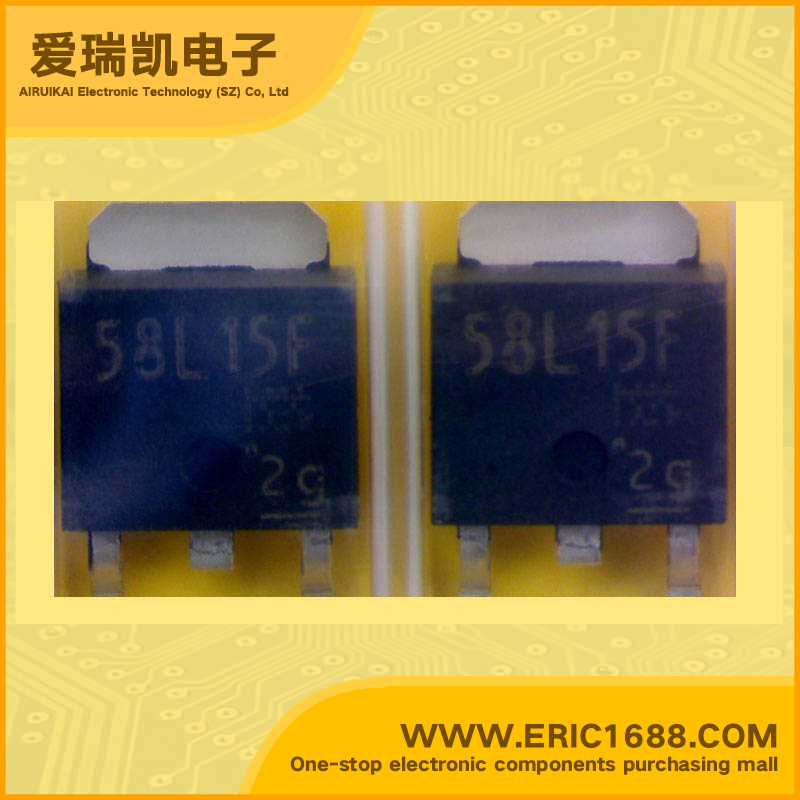

| Description & Applications | TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic. * 250 mA Low Dropout Voltage Regulator * The TA58L**F Series consists of fixed-positive-output, low-dropout regulators with an output current of 250 mA (max) that utilize PNP transistors for the output stage. Low dropout voltage and standby current make the TA58L**F Series suitable for applications requiring low power consumption. * Maximum output current : 250 mA * Output voltage : 5/ 6/ 8/ 9/ 10/ 12/ 15 V * Output voltage accuracy : VOUT ± 3% (@Tj=25°C) * Low-dropout voltage : 0.4 V (Max) (@IOUT =200mA) * Protection function : Over current protection/ thermal shutdown/ Reverse connection of power supply / 60 V load dump. |
| 描述与应用 | 东芝双极型线性集成电路硅单片。 *250 mA低压降稳压器 * TA58L** F系列包括固定正输出，低压差稳压器的输出电流为250 mA（最大值），利用PNP晶体管输出级。低压差电压和待机电流使TA58L** F系列适合应用要求低功耗。 *最大输出电流：250毫安 *输出电压：5/6/8/9/10/12/15 V。 *输出电压精度：VOUT±3％（@ TJ= 25°C） *低压差电压：0.4 V（最大）（@ IOUT=200mA的） *保护功能：过电流保护/热关机/电源/60 V负载突降的反向连接。 |
