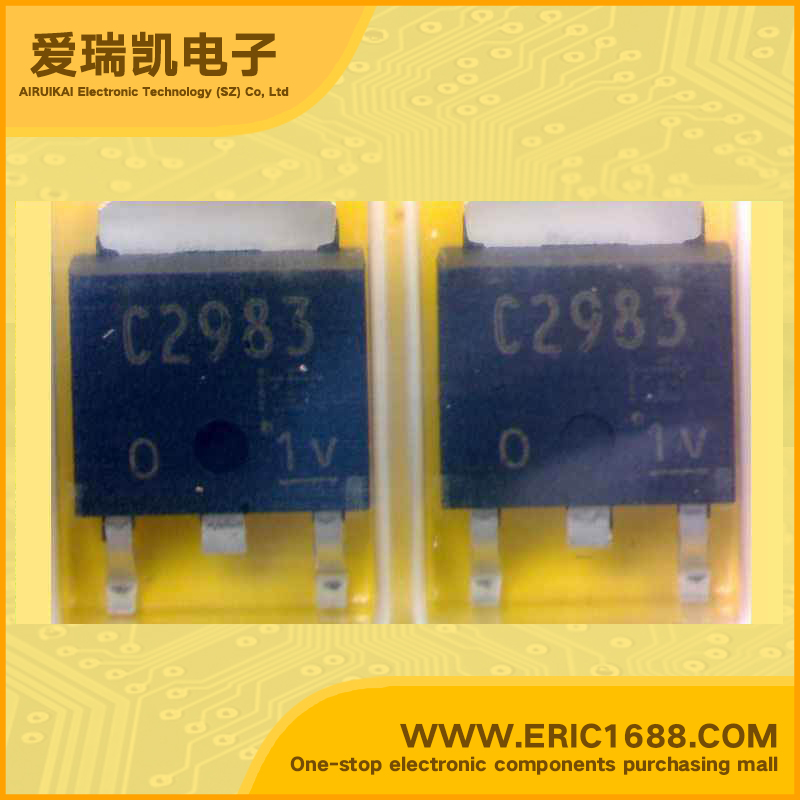

2SC2983-O PNP 160V 1.5A 100MHZ HEF=70~140 MARKING C2983
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
160V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
160V |
| 集电极连续输出电流IC Collector Current(IC) |
1.5A |
| 截止频率fT Transtion Frequency(fT) |
100MHZ |
| 直流电流增益hFE DC Current Gain(hFE) |
70~140 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
1.5V |
| 耗散功率Pc Power Dissipation |
1W |
| Description & Applications | TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) . Power Amplifier Applications . Driver Stage Amplifier Applications . * High transition frequency: fT = 100 MHz (typ.) * Complementary to 2SA1225 |
| 描述与应用 | TOSHIBA晶体管的硅NPN外延式（PCT程序）。 功率放大器应用。 驱动级放大器应用。 *高转换频率：FT =100兆赫（典型值） *互补2SA1225 |
