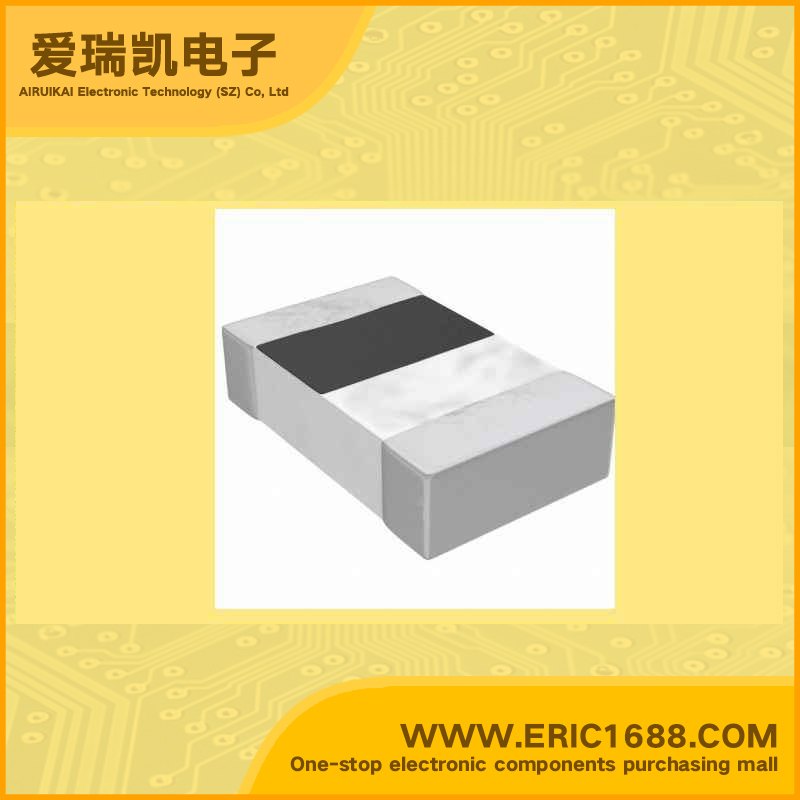

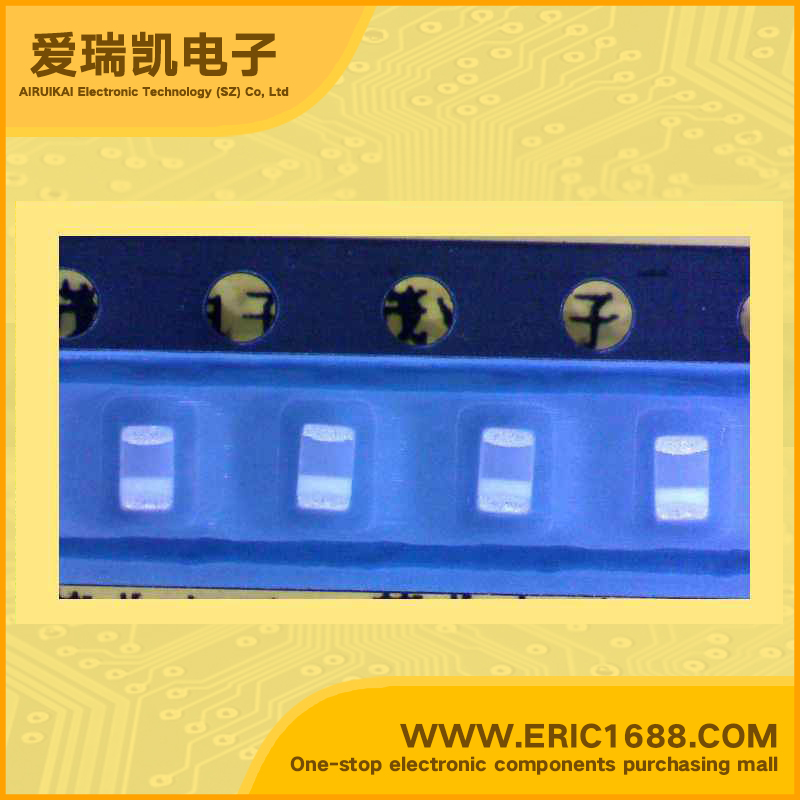

low power inductor LL2012-FR18J 0.18UH 0805-R18J
| 电感值 Inductance |
180nH/0.18UH |
| 误差 Tolerance |
±5% |
| 额定电流 Current Rating |
250mA |
| 饱和电流 Current - Saturation |
|
| 不同频率时的Q值 Q @ Frequency |
20 @ 100MHz |
| 自振谐频率SRF Frequency - Self Resonant |
500MHz |
| DC电阻DCR DC Resistance (DCR) |
1.8Ω/Ohm |
| 屏蔽 Shielding |
无屏蔽 Unshielded |
| Description & Applications | Multilayer Chip Inductors DESCRIPTION The LL2012-F Series is a miniature multilayer ceramic chip inductor in a standard 0805 package. Toko's proprietary laminated ceramic material provides high SRF, excellent Q, and superior reliability. These inductors are an ideal solution for signal shaping, or RF filtering for high frequency RF and wireless communication devices. FEATURES • Inductance range: 1.5-470nH •Temperature Coefficient: +250ppm/°C • Temperature Range: –40°C +100°C • Miniature size: 0805 footprint (2.0mm x 1.2mm) • Laminated ceramic allows high SRF over 6 GHz • Q: 50 Typical (at 800MHz) |
| 描述与应用 | 叠层片式电感器 LL2012-F系列多层陶瓷片式电感,0805封装。专有的叠层陶瓷材料提供高Q，SRF，优秀和卓越的可靠性。是信号调整，射频（RF），滤波高频RF和无线通信设备的理想选择。 特点 •电感值范围：1.5-470nH容 •温度系数：250 PPM /°C •温度范围：-40℃〜+100°C •叠层陶瓷允许在6 GHz的高SRF •Q：50（在800MHz） |
