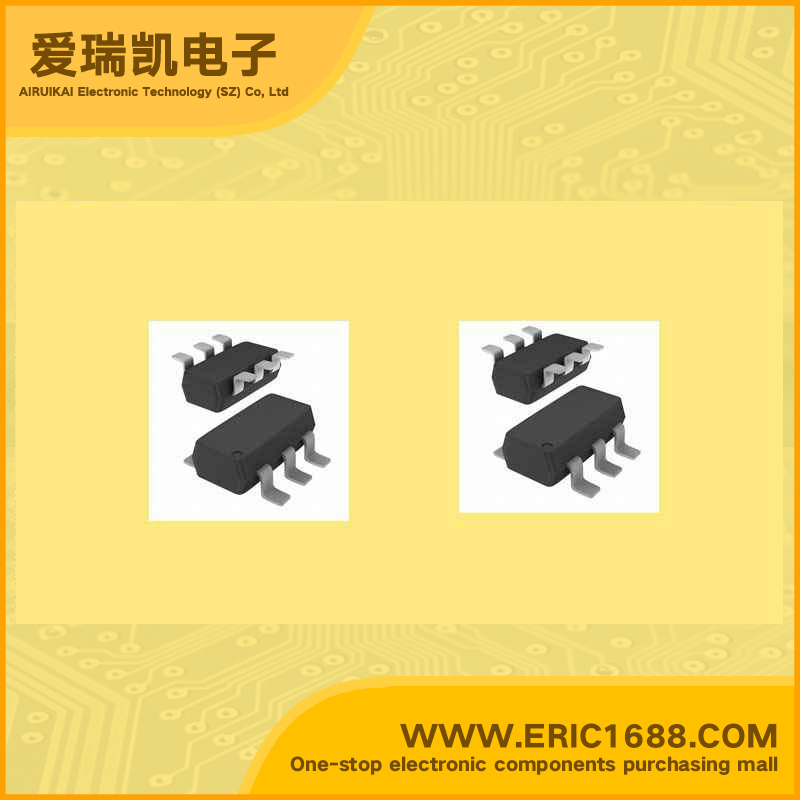

TPC6107 P Channel MOS -20V -4.5A SOT163 MARKING S3G Low drain-source ON resistance
最大源漏极电压Vds Drain-Source Voltage |
-20V |
最大栅源极电压Vgs(±) Gate-Source Voltage |
12V |
最大漏极电流Id Drain Current |
-4.5A |
源漏极导通电阻Rds Drain-Source On-State Resistance |
55mΩ@ VGS = -4.5V, ID = -2.2A |
开启电压Vgs(th) Gate-Source Threshold Voltage |
-0.5~-1.2V |
耗散功率Pd Power Dissipation |
2.2W |
Description & Applications | TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSIV) Notebook PC Applications Portable Equipment Applications • Small footprint due to small and thin package • Low drain-source ON resistance: RDS (ON) = 40 mΩ (typ.) • High forward transfer admittance: |Yfs| = 9.6 S (typ.) • Low leakage current: IDSS = −10 μA (max) (VDS = −20 V) • Enhancement model: Vth = −0.5 to −1.2 V (VDS = −10 V, ID = −200 μA) |
描述与应用 | 东芝场效应晶体管硅P沟道MOS类型(U-MOSIV) 笔记本电脑应用 便携式设备的应用 •由于占地面积小,小而薄的包装 •低漏源导通电阻RDS(ON)= 40mΩ(典型值) •高正向转移导纳:| YFS|= 9.6 S(典型值) •低漏电流:IDSS= -10μA(最大)(VDS=-20 V) •增强模式:Vth =-0.5〜-1.2 V (VDS= -10 V,ID= -200μA) |
