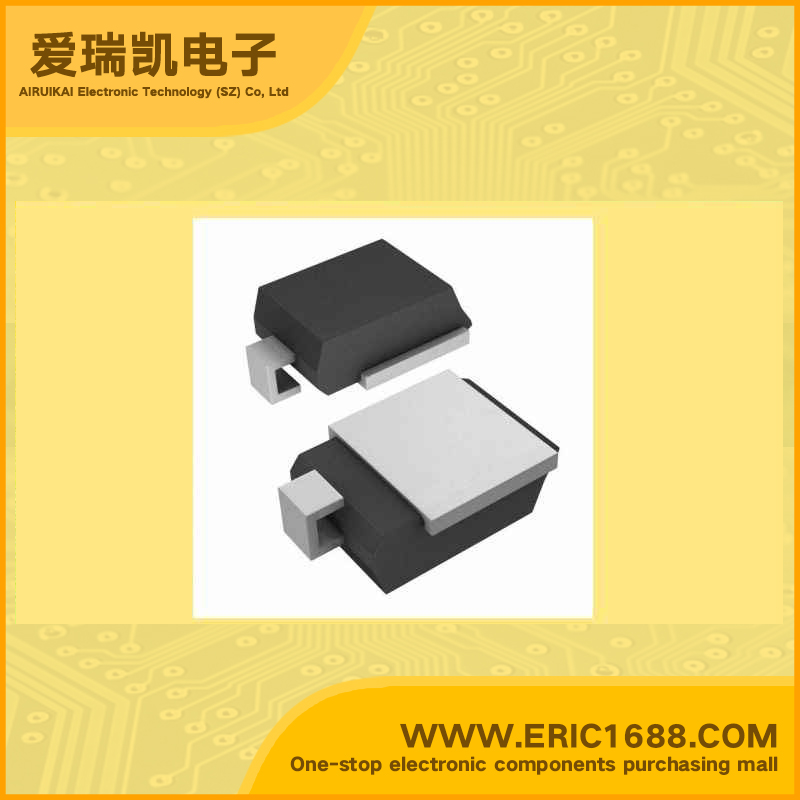

SM8S18A-2 TVS 18V DO-218 MARKING 8359
| 极性 Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage |
18V |
| 反向击穿电压VBR Breakdown Voltage |
20V~22.1v |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation |
6600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current |
226A |
| 额定耗散功率Pd Power dissipation |
8W |
| Description & Applications | Features • Surface Mount Automotive Transient Voltage Suppressor • Ideally suited for load dump protection • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • High temperature stability due to unique oxide passivation and patented PAR®construction • Integrally molded heatsink provides a very low thermal esistance for maximum heat dissipation • Low leakage current at TJ = 175°C • High temperature soldering guaranteed:260°C for 10 seconds at terminals • Meets ISO7637-2 surge spec. • Low forward voltage drop |
| 描述与应用 | 特点 •汽车表面贴装瞬态电压抑制器 •非常适合负载突降保护 •塑料包装有保险商实验室可燃性分类94V-0 •高温稳定性，由于独特的氧化物钝化和专利PAR®建设 •一体成型的散热片提供了非常低的热最大散热阻力 •低漏电流TJ= 175°C •高温焊接保证：260°C下10秒钟码头 •符合ISO7637-2的浪涌规范。 •低正向压降 |
