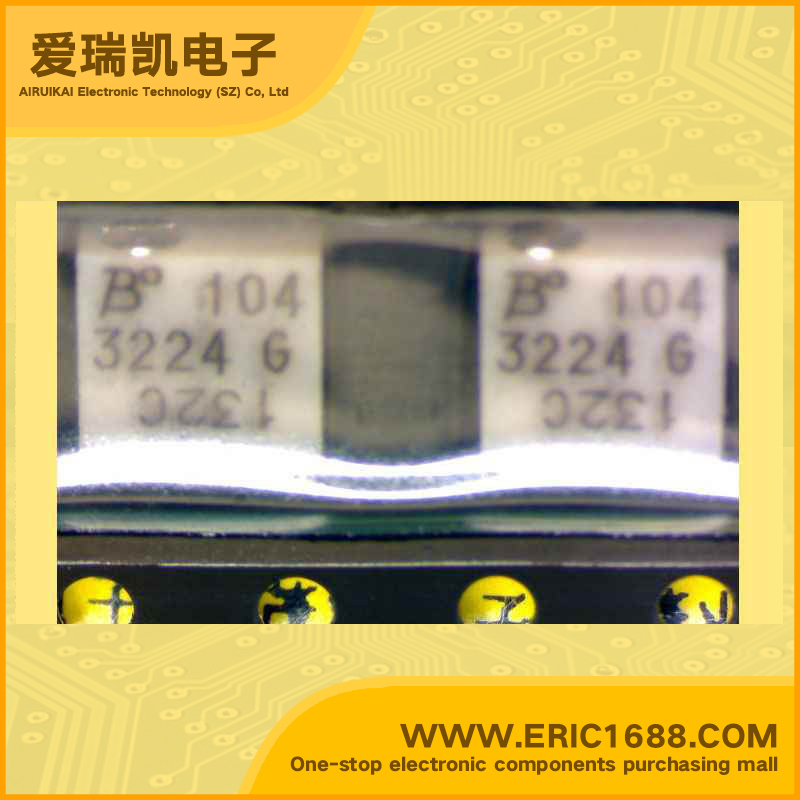

Trimmer Potentiometer 3224G-1-104E 100KΩ/Ohm 3224-100K
| 电阻值 Resistance |
100KΩ/Ohm |
| 额定功率 Power |
0.25W，1/4W |
| 容差 Tolerance |
±10% |
| 温度系数 Temperature Coefficient |
±100ppm/°C |
| 圈数 Number of Turns |
12 |
| 调节类型 Adjustment Type |
侧面调节 Side Adjustment |
| 端子类型 Termination Style |
鸥翼型 Gull Wing |
| Description & Applications | ■ Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed ■ Sealed to withstand board wash processing ■ 4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint ■ Low CRV - 1 % ■ 3224 - 4 mm SMD Trimpot® Trimming Potentiometer |
| 描述与应用 | ■表面贴装4毫米/多圈金属陶瓷/工业/密封 ■密封承受冲洗电路板处理 ■4mm的设计符合EIA/ EIAJ/ IPC/ VECI的SMD标准微调足迹 ■低CRV - 1％ ■3224 - 4毫米SMD器系列Trimpot®微调电位器 |
