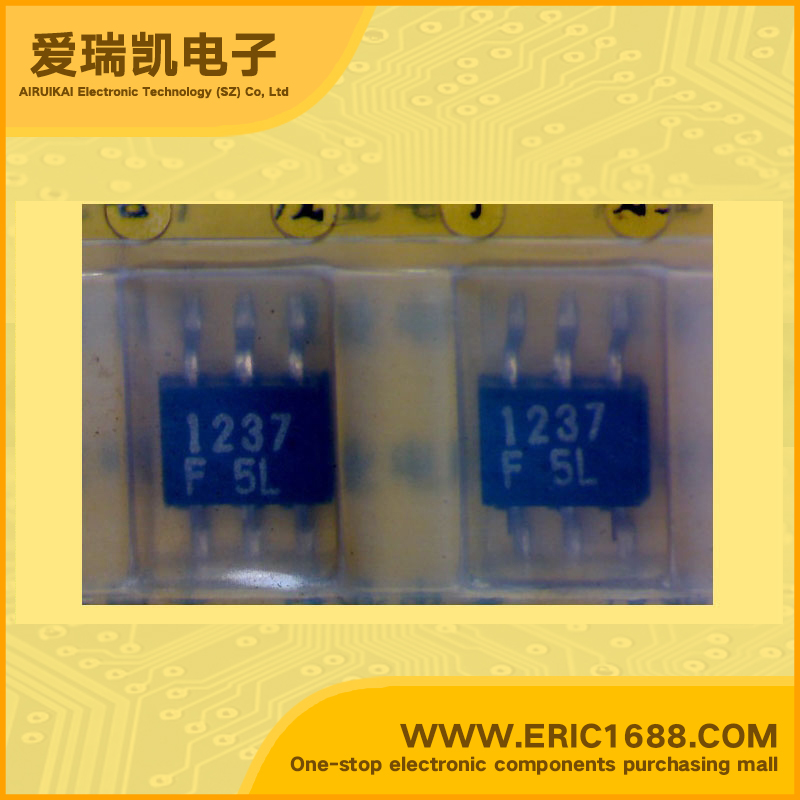

2SA1237F-6B-TJ PNP transistors（BJT） -55V -150mA/-0.15A 100MHz 160~320 -500mV/-0.5V 2030A/DP6B marking 1237 differential amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -55V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | −150mA/-0.15A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 160~320 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率Pc PoWer Dissipation | 200mW/0.2W |
| Description & Applications | PNP epitaxial planar silicon composite transistor differential amp applications |
| 描述与应用 | PNP外延平面 硅复合晶体管 差分放大器的应用 |
