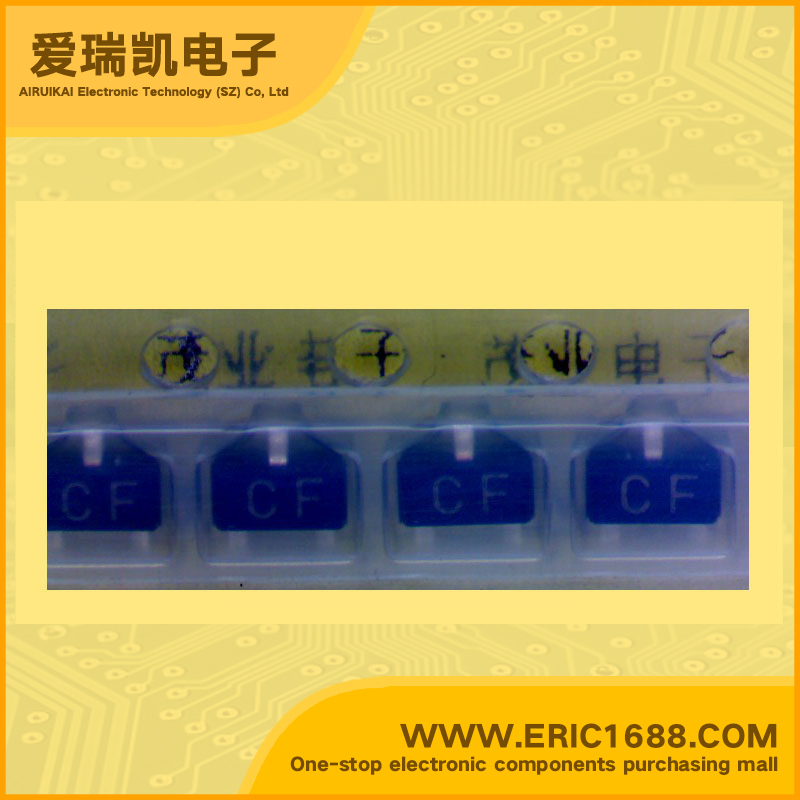

2SA1366 PNP transistors（BJT） -55V -400mA/-0.4A 150MHz 250~500 -170mV/-0.17V SOT-23/SC-59 marking CF large current drive
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -55V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | -400mA/-0.4A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 250~500 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -170mV/-0.17V |
| 耗散功率Pc PoWer Dissipation | 150mW/0.15W |
| Description & Applications | for general purpose high current drive application silicon PNP epitaxial type high collector current； high gain band width product； excellent linearity of DC forward current gain； high Vceo； for switching small type motor driver application |
| 描述与应用 | 通用的高电流驱动应用 硅PNP外延型 高集电极电流; 高增益带宽产品; 卓越的线性度直流正向电流增益; 高VCEO; 开关小型马达驱动器应用 |
