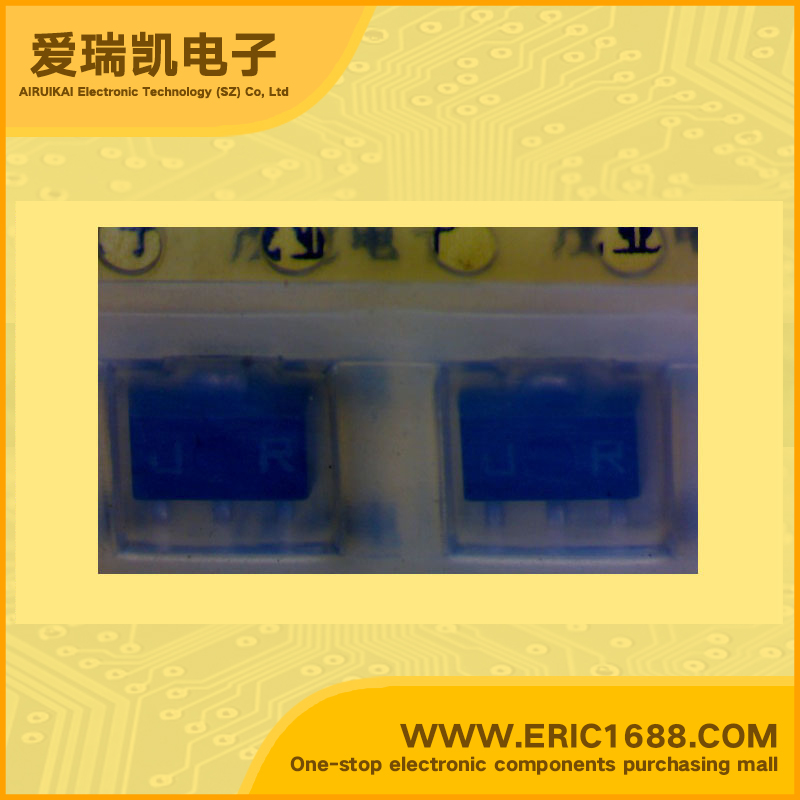

2SA1384 PNP transistors（BJT） -300V -100mA/-0.1A 70MHz 30~90 -500mV/-0.5V SOT-89/SC-62 marking JR chroma display/nixie tube driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
−300V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
−300V |
| 集电极连续输出电流IC Collector Current(IC) |
−100mA/-0.1A |
| 截止频率fT Transtion Frequency(fT) |
70MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
30~90 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
−500mV/-0.5V |
| 耗散功率Pc PoWer Dissipation |
500mW/0.5W |
| Description & Applications | Silicon PNP Triple Diffused Type (PCT process) HIGH Voltage Control Applications Plasma Display, Nixie Tube Driver Applications Cathode Ray Tube Brightness Control Applications • High voltage: VCBO = −300 V, VCEO = −300 V • Low saturation voltage: VCE (sat) = −0.5 V (max) • Small collector output capacitance: Cob = 6 pF (typ.) • Complementary to 2SC3515 • Small flat package • PC = 1.0 to 2.0 W (mounted ceramic substrate) |
| 描述与应用 | PNP硅三重扩散类型（PCT程序） 高电压控制应用 等离子显示器，数码管驱动器应用 阴极射线管的亮度控制应用 •高电压：VCBO=-300 V VCEO=-300 V •低饱和电压VCE（星期六）=-0.5 V（最大值） •小集电极输出电容：COB= 6 PF（典型值） •互补2SC3515 |
