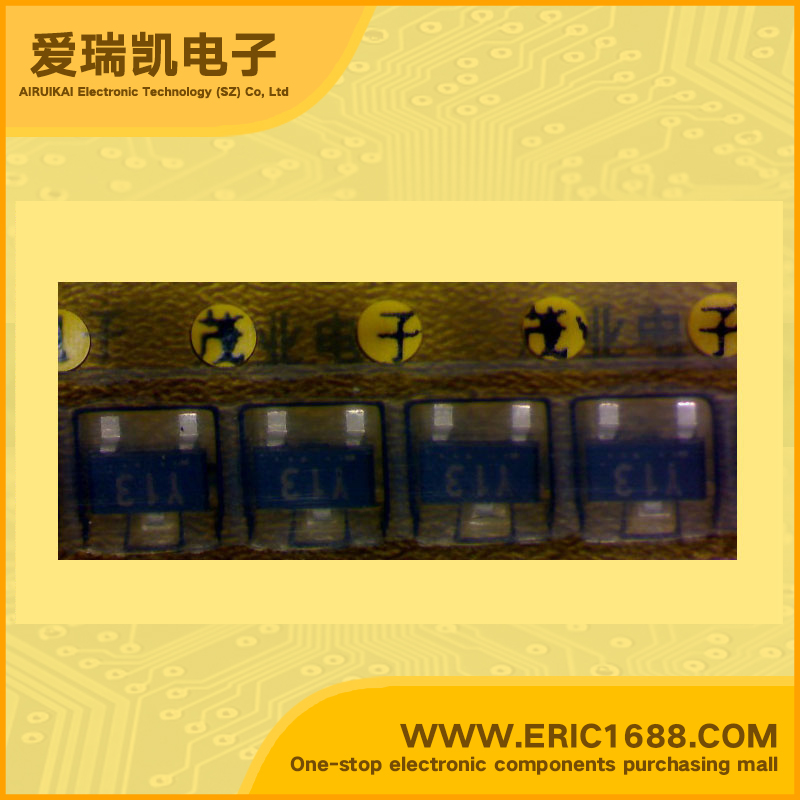

2SA1464 PNP transistors（BJT） -60V -500mA/-0.5A 400MHz 100~200 -450mV/-0.45V SOT-23/SC-59 marking Y13 RF amplifier/switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
−40V |
| 集电极连续输出电流IC Collector Current(IC) |
−500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) |
400MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
100~200 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
−450mV/-0.45V |
| 耗散功率Pc PoWer Dissipation |
200mW/0.2W |
| Description & Applications | High frequency amplifier and switching PNP silicon epitaxial transistor mini mold high fT； complementary to 2SC3739 |
| 描述与应用 | 高频放大器和开关 PNP硅外延晶体管 小型模具 高频率; 2SC3739互补 |
