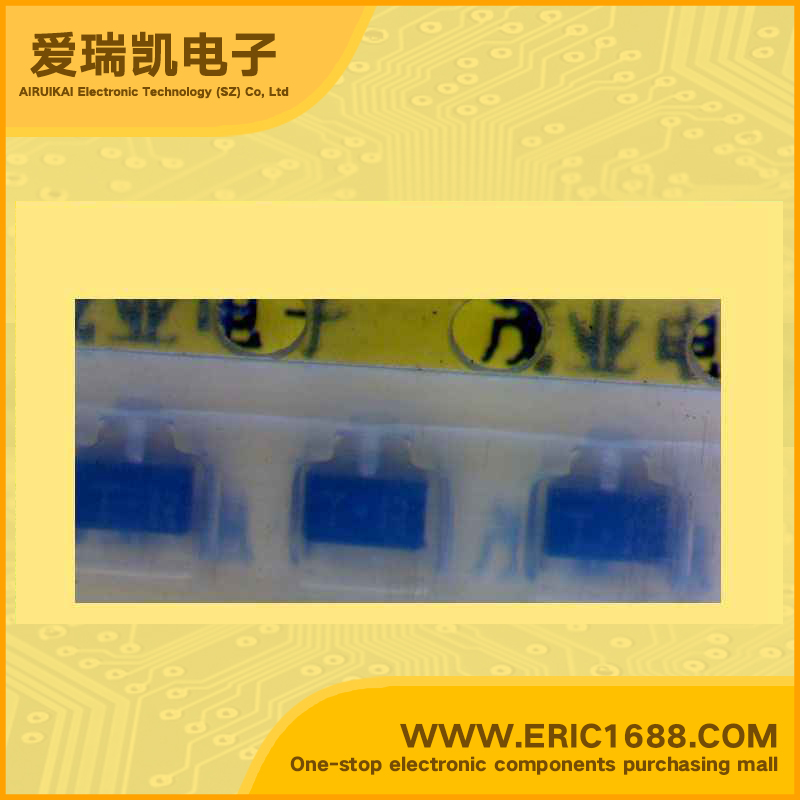

2SA1603 PNP transistors(BJT) -50V -100mA/-0.1A 200MHz 180~390 -300mV/-0.3V SOT-323/SC-70 marking TR low-frequency amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-50V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−50V
集电极连续输出电流IC
Collector Current(IC)
−100mA/-0.1A
截止频率fT
Transtion Frequency(fT)
200MHz
直流电流增益hFE
DC Current Gain(hFE)
180~390
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-300mV/-0.3V
耗散功率Pc
PoWer Dissipation
150mW/0.15W
Description & ApplicationsFOR LOW FREQUENCY AMPLIFY APPLICATION SILICON PNP EPITAXIAL TYPE(mini type) FEATURE ●Small collector to emitter saturation voltage. VCE(sat)=-0.3V max(@Ic=-100mA,IB=-10mA) ●Excellent linearity of DC forward gain. ●Super mini package for easy mounting APPLICATION For Hybrid IC,small type machine low frequency voltage Amplify application
描述与应用对于低频放大应用 硅PNP外延型(迷你型) 特点 ●小集电极到发射极饱和电压。                     VCE(sat)=-0.3V最大(@ IC =100mA时IB=-10mA的) ●直流前锋出色的线性度获得。 ●超小型封装,便于安装 应用 对于混合集成电路,小型机低频电压 放大应用
