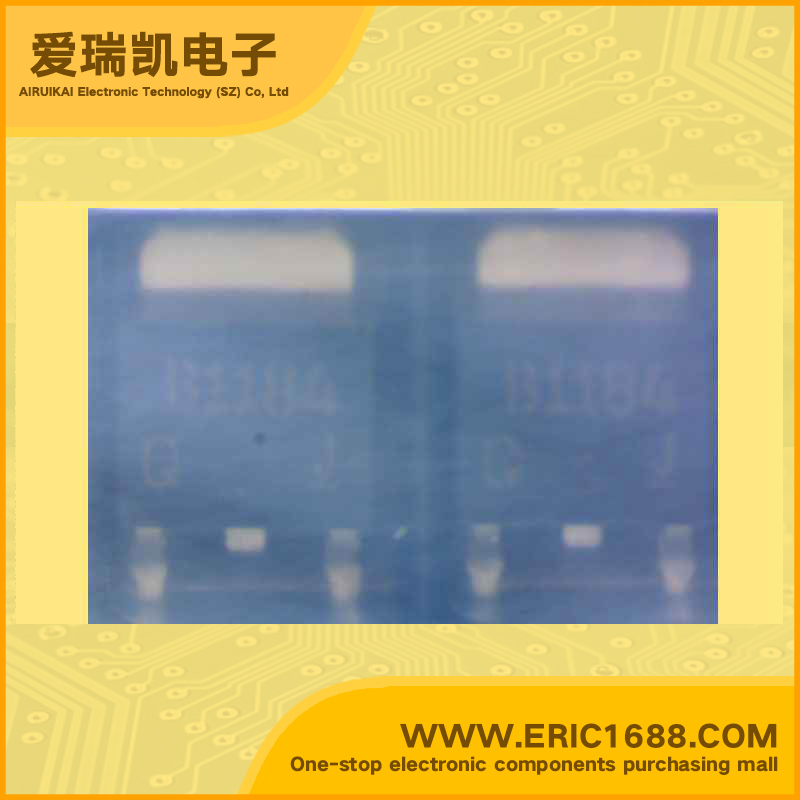

2SB1184-Q PNP transistors（BJT） -60V -3A 70MHz 120~270 -1000mV/-1V TO-252/DPAK marking B1184

Model：2SB1184-Q
Mark / screen / code / typing：B1184
Manufacturer：
Date Code：04+rohs 05+
Package：TO-252/DPAK/SC-63/CPT3
Standard Package：2500
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	-60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	−50V
集电极连续输出电流IC Collector Current(IC)	-3A
截止频率fT Transtion Frequency(fT)	70MHz
直流电流增益hFE DC Current Gain(hFE)	120~270
管压降VCE（sat） Collector-Emitter SaturationVoltage	-1000mV/-1V
耗散功率Pc PoWer Dissipation	500mW/0.5W
Description & Applications	PNP Silicon epitaxial planar transistor Medium power Transistor Features 1) Low VCE(sat). 2) Complements the 2SD1760
描述与应用	PNP硅外延平面晶体管中等功率晶体管特点 1）低VCE（sat）的。 2）补充2SD1760

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
2SB1188-P PNP transistors（BJT） -40V -2A 100MHz 82~180 -800mV/-0.8V SOT-89/MPT marking BCP	2SB1188-P Mark：BCp Package：SOT-89/SC-62/MPT	-	Batch number：05+ 05+	2300 Min Order:10
2SB1188-Q PNP transistors（BJT） -40V -2A 100MHz 120~270 -800mV/-0.8V SOT-89/MPT marking BCQ	2SB1188-Q Mark：BCQ Package：SOT-89/SC-62/MPT	-	Batch number：05+ 05+NOPB350	3430 Min Order:10
2SB1188-R PNP transistors（BJT） -40V -2A 100MHz 180~390 -800mV/-0.8V SOT-89/SC-62 marking BCR	2SB1188-R Mark：BCR Package：SOT-89/SC-62/MPT	-	Batch number：04+2RNOPB 05+NOPB	700 Min Order:10
2SB1189-Q PNP transistors（BJT） -80V -700mA/-0.7A 100MHz 120~390 -400mV/-0.4V SOT-89/MPT marking BDQ high breakdown voltage	2SB1189-Q Mark：BDQ Package：SOT-89/SC-62/MPT	-	Batch number：05+2RNOPB 05+rohs 900	6000 Min Order:10
2SB1189-R PNP transistors（BJT） -80V -700mA/-0.7A 100MHz 120~390 -400mV/-0.4V SOT-89/MPT marking BDR high breakdown voltage	2SB1189-R Mark：BDR Package：SOT-89/SC-62/MPT	-	Batch number：05+1r04nopb 05+rohs	6400 Min Order:10
2SB1197K PNP transistors（BJT） -40V -800mA/-0.8A 200MHz 120~270 -500mV/-0.5V SOT-23/SMT3 marking AHQ	2SB1197K T146Q Mark：AHQ Package：SOT-23/SC-59/SMT3	-	Batch number：04+3Knopb 05+NOPB400	15600 Min Order:10
2SB1197K PNP transistors（BJT） -40V -800mA/-0.8A 200MHz 180~390 -500mV/-0.5V SOT-23/SMT3 marking AHR	2SB1197K T146R Mark：AHR Package：SOT-23/SC-59/SMT3	-	Batch number：04+ROHS 05+NOPB	2600 Min Order:10
