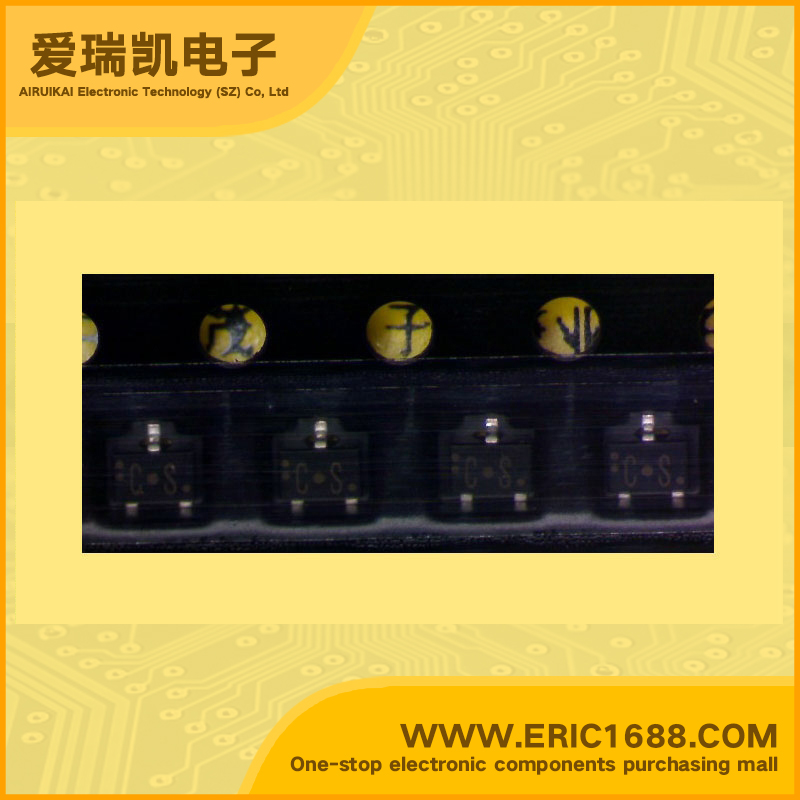

2SB1219-S PNP transistors（BJT） -30V -500mA/-0.5A 200MHz 170~340 -600mV/-0.6V SOT-323/SC-70 marking CS amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −25V |
| 集电极连续输出电流IC Collector Current(IC) | −500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 170~340 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −600mV/-0.6V |
| 耗散功率Pc PoWer Dissipation | 150mW/0.15W |
| Description & Applications | PNP Silicon epitaxial planar transistor For general amplification Complementary to 2SD1820 Features Large collector current IC S-Mini type package |
| 描述与应用 | PNP硅外延平面晶体管 对于一般的放大 补充型2SD1820 特点 大集电极电流IC S-迷你型封装 |
