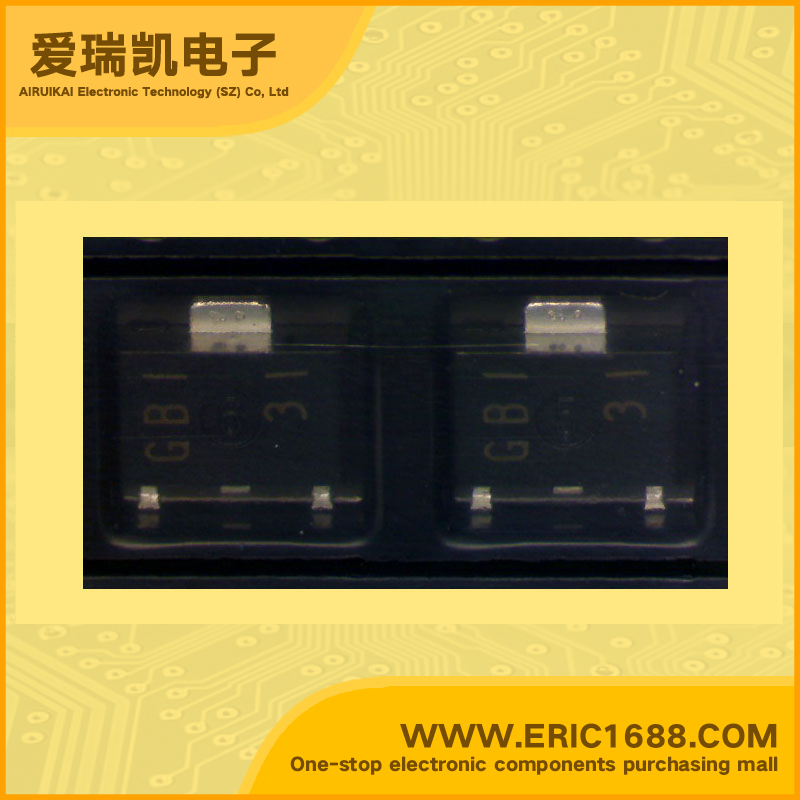

2SB1578 PNP transistors（BJT） -60V -5A 100~200 -300mV/-0.3V SC-84 marking GB1 low-frequency power amplifier/motor driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
−60V |
| 集电极连续输出电流IC Collector Current(IC) |
-5A |
| 截止频率fT Transtion Frequency(fT) |
|
| 直流电流增益hFE DC Current Gain(hFE) |
100~200 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
-300mV/-0.3V |
| 耗散功率Pc PoWer Dissipation |
2W |
| Description & Applications | PNP Silicon epitaxial planar transistor FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING The 2SB1578 features high current capacity in small dimension and is ideal for DC/DC converters and motor drivers. Features • New package with dimensions in between those of small signal and power signal package • High current capacitance • Low collector saturation voltage • Complementary transistor with 2SD2425 |
| 描述与应用 | PNP硅外延平面晶体管 低频功率放大器和中速切换 2SB1578具有高电流容量小尺寸和DC/ DC转换器和电机驱动器的理想选择。 特点 •新的封装，尺寸之间的小信号和功率信号包 •高电流电容 •低集电极饱和电压 •互补晶体管2SD2425 |
