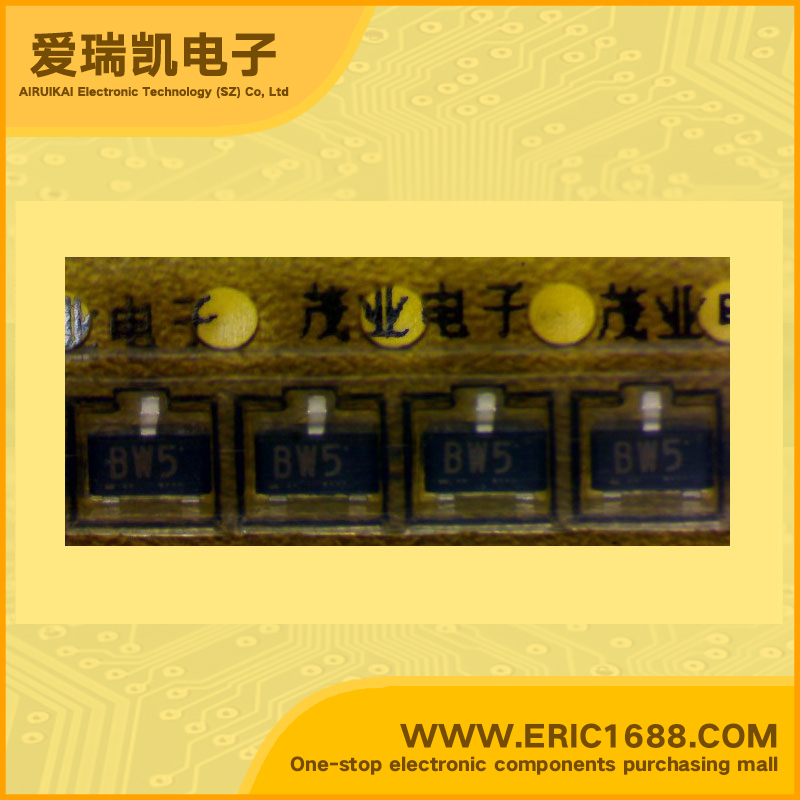

2SB736 PNP transistors（BJT） -60V -300mA/-0.3A 100MHz 250~400 -600mV/-0.6V SOT-23/SC-59 marking BW5 radio audio frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
−60V |
| 集电极连续输出电流IC Collector Current(IC) |
−300mA/-0.3A |
| 截止频率fT Transtion Frequency(fT) |
100MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
250~400 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
−600mV/-0.6V |
| 耗散功率Pc PoWer Dissipation |
200mW/0.2W |
| Description & Applications | PNP Silicon epitaxial planar transistor Audio frequency power amplifier Features Micro package High DC current gain Complementary to 2SD780 |
| 描述与应用 | PNP硅外延平面晶体管 音频功放 特点 微型封装 高直流电流增益 互补2SD780 |
