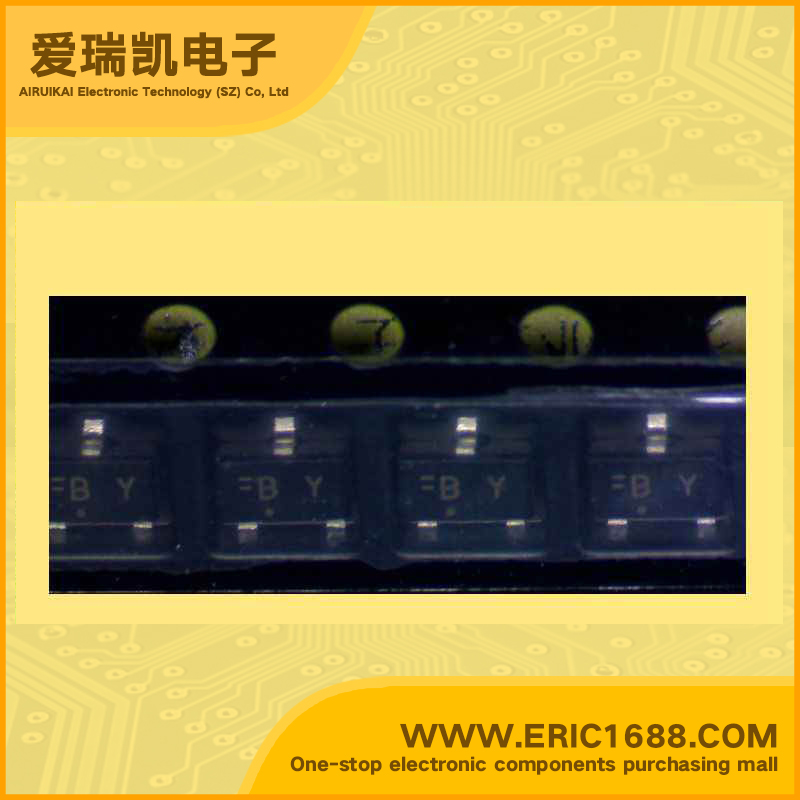

2SC3395 NPN Transistors(BJT) 50V 100mA/0.1A 200MHz 50 300mV/0.3V SOT-23/SC-59 marking BY switch circuit inverter circuit interface circuit drive circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 47K |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47K |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 200mW |
| Description & Applications | NPN Silicon epitaxial Transistors switching applications applications switching circuit, inverter circuit,interface circuit,driver circuit Features Built-in bias resistor Small-size package Complementary to 2SA1341 |
| 描述与应用 | NPN硅外延晶体管 开关应用 应用程序 开关电路，逆变电路，接口电路，驱动电路 特点 内置偏置电阻 小尺寸封装 互补型2SA1341 |
