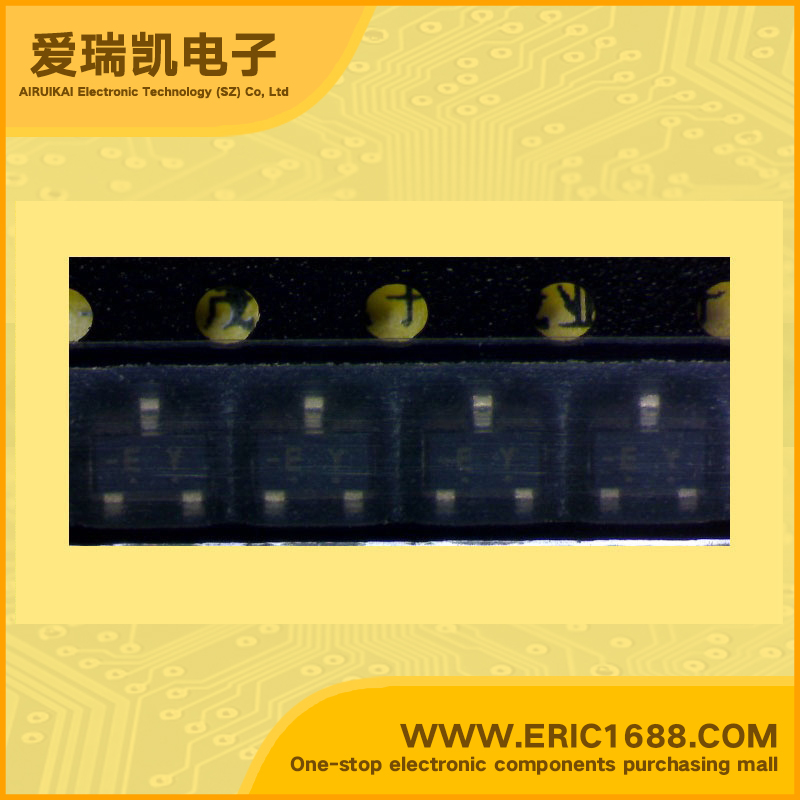

2SC3398 NPN Transistors(BJT) 50V 100mA/0.1A 200MHz 50 300mV/0.3V SOT-23/SC-59 marking EY switch circuit inverter circuit interface circuit drive circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial Transistors switching applications applications switching circuit, inverter circuit,interface circuit,driver circuit Features Built-in bias resistor Small-size package Complementary to 2SA1344 |
| 描述与应用 | NPN硅外延晶体管 开关应用 应用程序 开关电路，逆变电路，接口电路，驱动电路 特点 内置偏置电阻 小尺寸封装 互补型2SA1344 |
