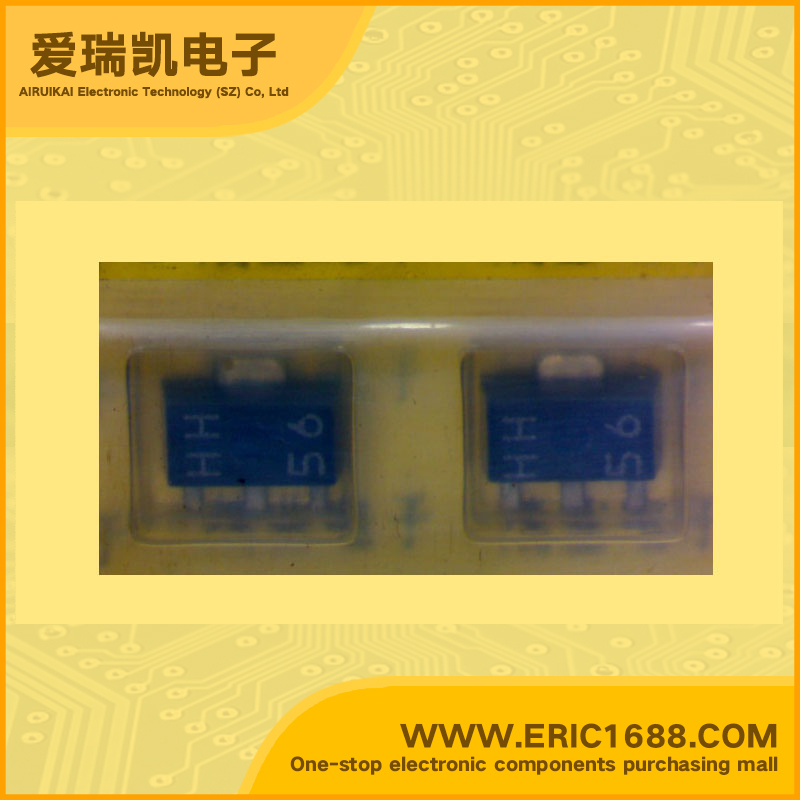

2SC3439 NPN Transistors(BJT) 30V 1.5A 130MHz 600~1200 500mV/0.5V SOT-89 marking HH high gain motor drive
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
25V |
| 集电极连续输出电流IC Collector Current(IC) |
1.5A |
| 截止频率fT Transtion Frequency(fT) |
130MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
600~1200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
500mV/0.5V |
| 耗散功率Pc Power Dissipation |
500mW/0.5W |
| Description & Applications | NPN Silicon epitaxial Transistors for small type motor plunger drive applications Complementary to 2SA1369 Features High hFE High collector current High VCE High collector dissipation Small package for easy mounting |
| 描述与应用 | NPN硅外延晶体管 小型马达柱塞驱动应用 互补型2SA1369 特点 高HFE 高集电极电流 高VCE 高集电极耗散 易于安装的小型封装 |
