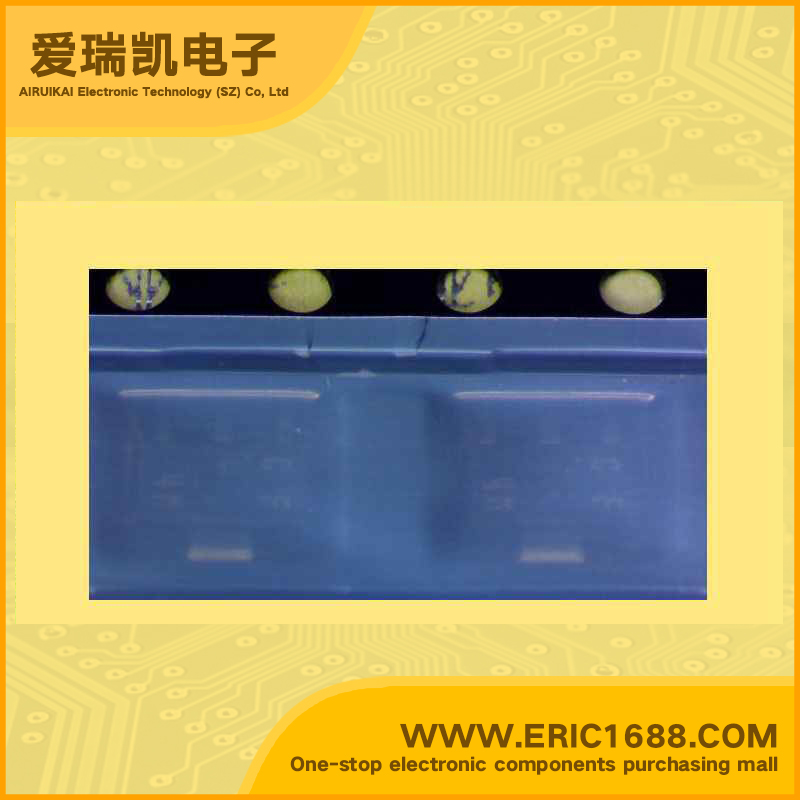

2SC3650 NPN Transistors(BJT) 30V 1.2A 220MHz 800~3200 500mV/0.5V SOT-89/PCP marking CF low-frequency amplifier driver muting circuit

Price (excluding freight):
Batches(PCS):
$0.126
≤99
$0.113
≤199
$0.094
≤499
$0.082
≤999
$0.076
FCL

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
30V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
25V
集电极连续输出电流IC
Collector Current(IC)
1.2A
截止频率fT
Transtion Frequency(fT)
220MHz
直流电流增益hFE
DC Current Gain(hFE)
800~3200
管压降VCE(sat)
Collector-Emitter Saturation Voltage
500mV/0.5V
耗散功率Pc
Power Dissipation
500mW/0.5W
Description & ApplicationsNPN epitaxial planar Silicon Transistors Applications Low frequency amplifiers,Various drives, muting circuits Features High hFE General-purpose Amp applications High DC current gain Low Vce Large current capacity Very small size making it easy to provide high-density.
描述与应用NPN外延平面硅晶体管 应用 低频放大器,各种驱动器,静音电路 特点 高HFE 通用放大器应用 高直流电流增益 低Vce 大电流容量 非常小的尺寸使其易于提供高密度。
