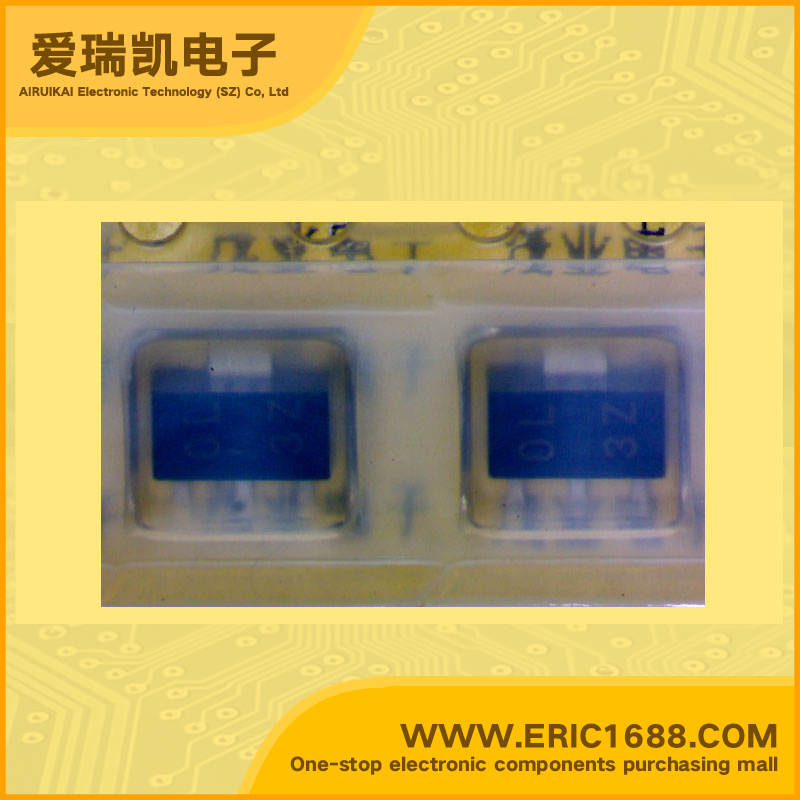

2SC3736 NPN Transistors(BJT) 80V 1A 380MHz 60~120 400mV/0.4V SOT-89 marking OL high speed voltage switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
45V |
| 集电极连续输出电流IC Collector Current(IC) |
1A |
| 截止频率fT Transtion Frequency(fT) |
380MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
60~120 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
400mV/0.4V |
| 耗散功率Pc Power Dissipation |
2W |
| Description & Applications | NPN Silicon Epitaxial Transistors Applications High speed switch Features High speed,high voltage switching Low collector saturation voltage Complementary to the NEC 2SA1460PNP |
| 描述与应用 | NPN硅外延晶体管 应用 高速开关 特点 高速，高电压开关 低集电极饱和电压 与NEC2SA1460PNP互补 |
