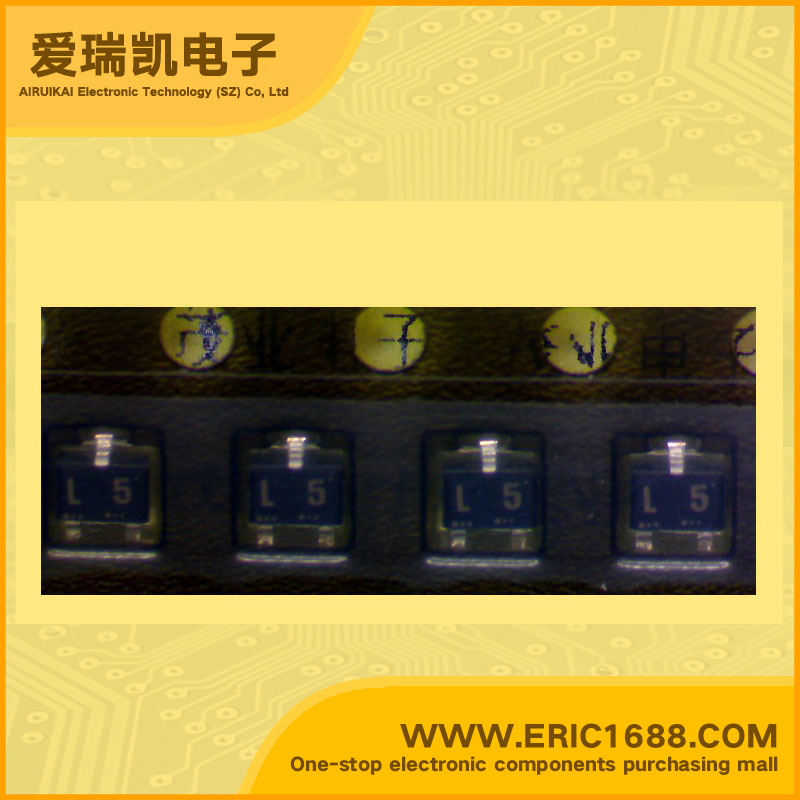

2SC4177 NPN Transistors(BJT) 60V 100mA/0.1A 250MHz 135~270 150mV/0.15V SOT-323/SC-70 marking L5 radio general amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 135~270 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 150mV/0.15V |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | NPN Silicon Epitaxial transistor AUDIO FREQUENCY GENERAL PURPOSE AMPLIFIER Complementary to 2Sa1611 High DC Current Gain High Voltage |
| 描述与应用 | NPN硅外延晶体管 音频通用放大器 互补2SA1611 高DC电流增益 高电压 |
