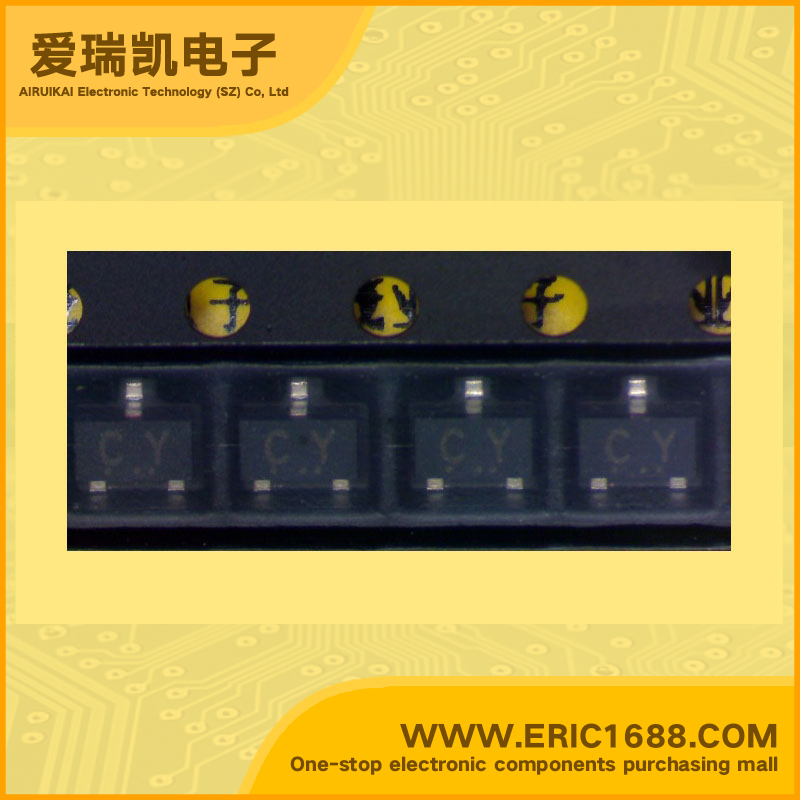

2SC4209-y NPN Transistors(BJT) 80V 300mA/0.3A 100MHz 120~240 500mV/0.5V SOT-23/SC-59 marking CY drive amplifier voltage amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 80V |
| 集电极连续输出电流IC Collector Current(IC) | 300mA/0.3A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) DRIVER STAGE AMPLIFIER APPLIATIONS VOLTAGE AMPLIFIER APPLICATIONS Complementary to 2SA1620 |
| 描述与应用 | 东芝晶体管的硅NPN外延式（PCT的进程） 驱动级放大器的应用进展 电压放大器的应用 与2SA1620互补 |
