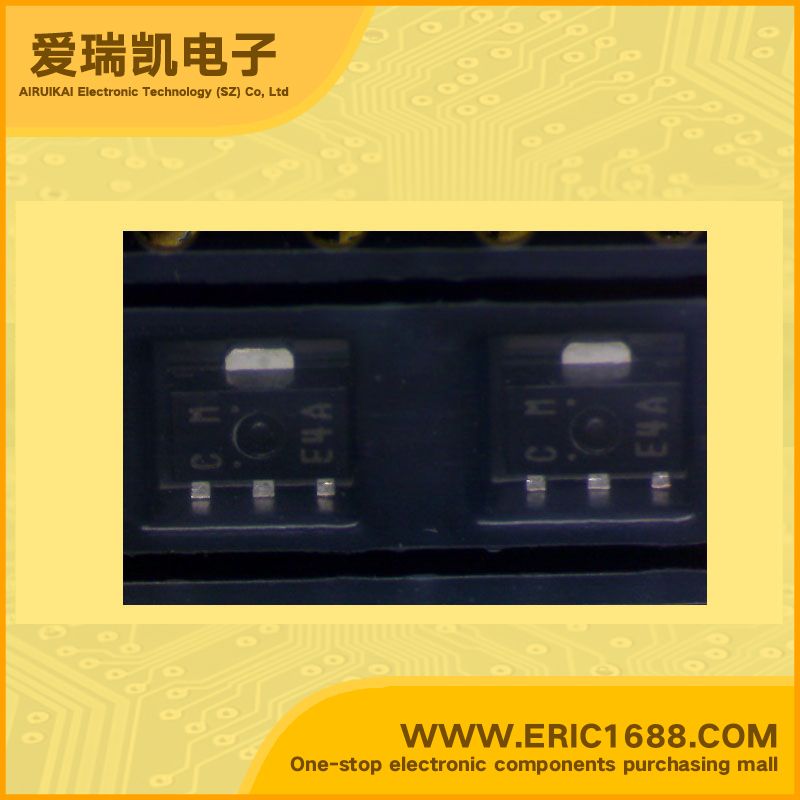

2SC4504E NPN Transistors(BJT) 30V 300mA/0.3A 2.2GHz 100~200 150mV/0.15V SOT-89/PCP marking CME videooutputdriver application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流IC Collector Current(IC) | 300mA/0.3A |
| 截止频率fT Transtion Frequency(fT) | 2.2GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 150mV/0.15V |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | NPN epitaxial planer Silicon transistor High-Definition CRT Display Video Output Driver Applications High fT Large current Adoption of FBET process |
| 描述与应用 | NPN外延刨床硅的晶体管 高清晰度CRT显示器 视频输出驱动器应用 高FT 大电流 采纳FBET过程 |
