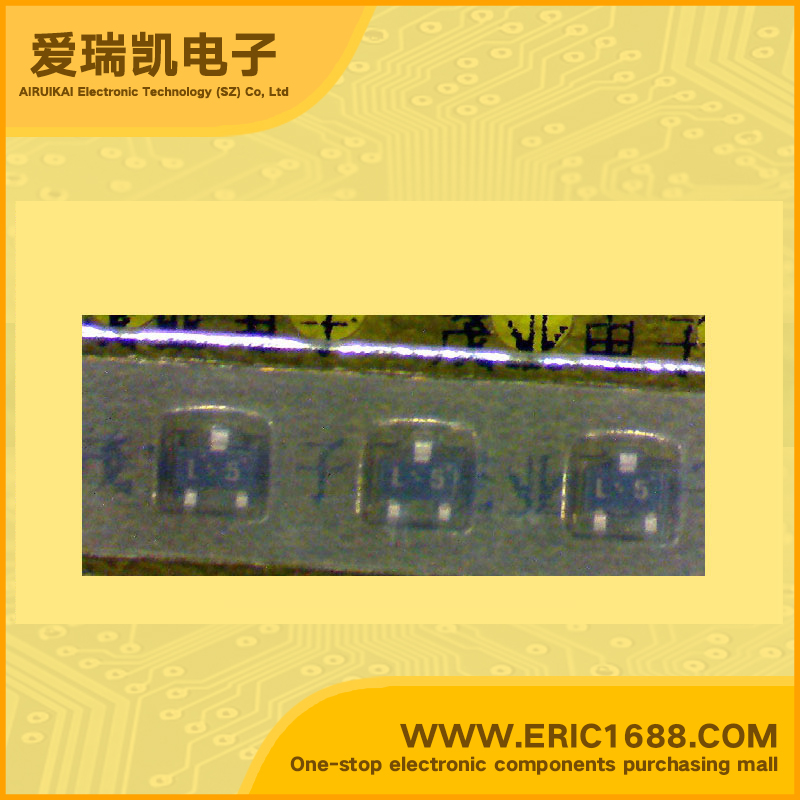

2SC4783 NPN Transistors(BJT) 60V 100mA/0.1A 250MHz 135~270 150mV/0.15V SOT-523 marking L5
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 135~270 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 150mV/0.15V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | Features • NPN SILICON EPITAXIAL TRANSISTOR • High DC current gain: hFE2 = 200 TYP. • High voltage: VCEO = 50 V |
| 描述与应用 | 特点 •NPN硅外延晶体管 •高直流电流增益：HFE2=200 TYP。 •高电压：VCEO= 50 V |
