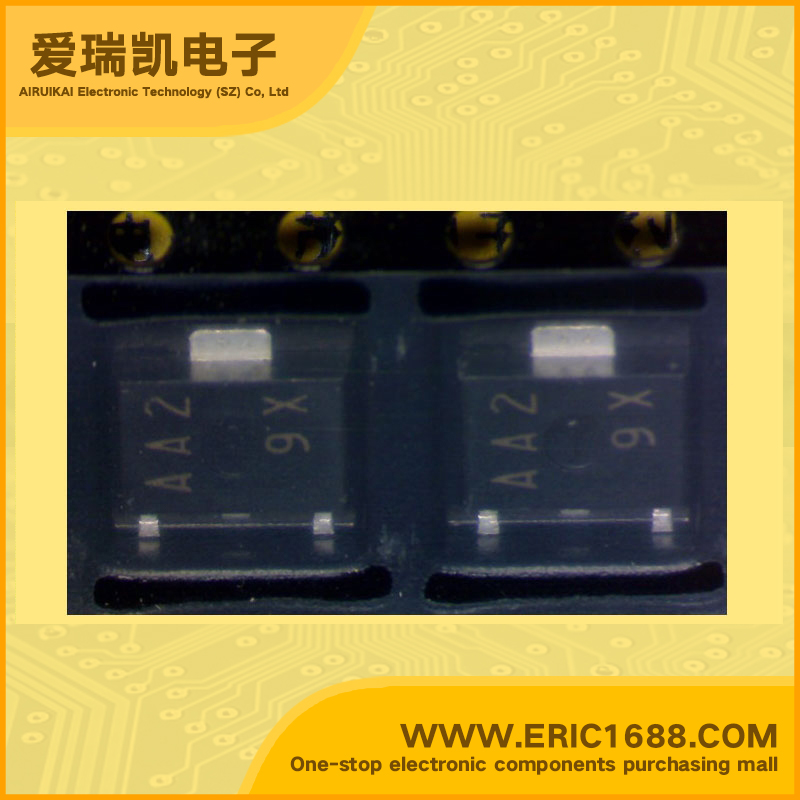

2SC4942 NPN Transistors(BJT) 600V 1A 30MHz 40~80 350mV/0.35V SC-84 marking AA2 high speed voltage switch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
600V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
600V
集电极连续输出电流IC
Collector Current(IC)
1A
截止频率fT
Transtion Frequency(fT)
30MHz
直流电流增益hFE
DC Current Gain(hFE)
40~80
管压降VCE(sat)
Collector-Emitter Saturation Voltage
350mV/0.35V
耗散功率Pc
Power Dissipation
2W
Description & Applications Features • SILICON TRANSISTORS • NPN SILICON TRIPLE DIFFUSED TRANSISTOR FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING • New package with dimensions in between those of small signal and power signal package • High voltage • Fast switching speed • Complementary transistor with the 2SA1871
描述与应用 特点 •硅晶体管 •NPN硅三重扩散型晶体管高速高压开关 •新的封装,尺寸之间的小信号和功率信号包 •高电压 •开关速度快 •与2SA1871互补晶体管
