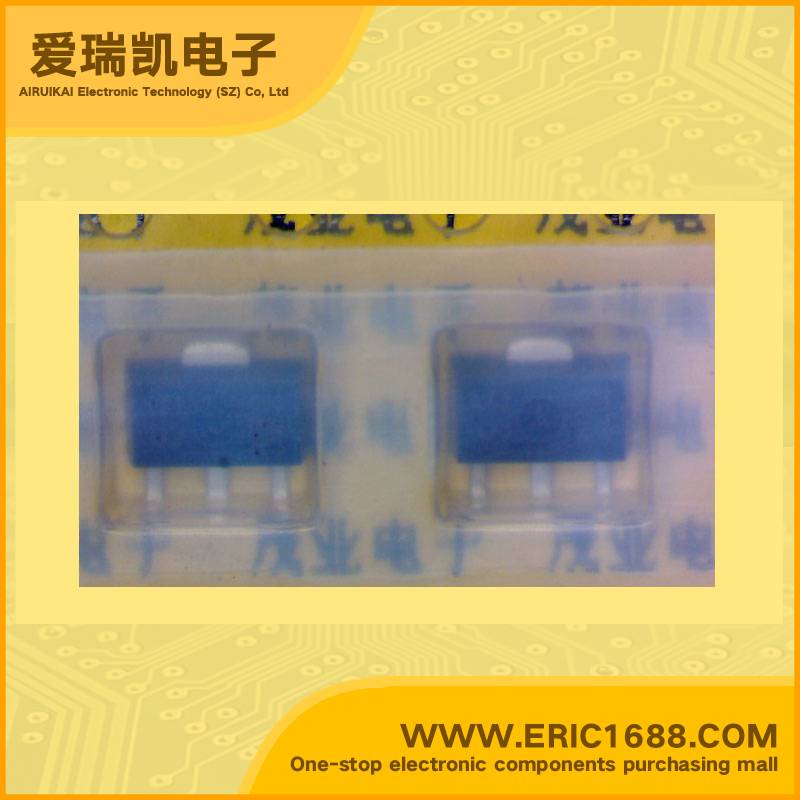

2SC5210 NPN Transistors(BJT) 300V 100mA/0.1A 80MHz 55~230 <1.5V SOT-89 marking SE 小型彩色TV chromaoutput
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 300V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 5V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 80MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 55~230 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | <1.5V |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | small type colour tv chroma output application silicon NPN triple diffused type features * high voltage Vceo=250V * low Cob Cob=3.5pF * high fT fT=80MHZ * small package for mounting application small type colour TV chroma output circuit,high voltage switching circuit |
| 描述与应用 | 小型彩色电视色度输出应用型硅NPN三重扩散类型 特点 *高电压VCEO=250V *低COB COB=3.5pF *高FT FT =80MHZ *安装包小 应用 小型彩色电视色度输出电路，高电压开关电路 |
