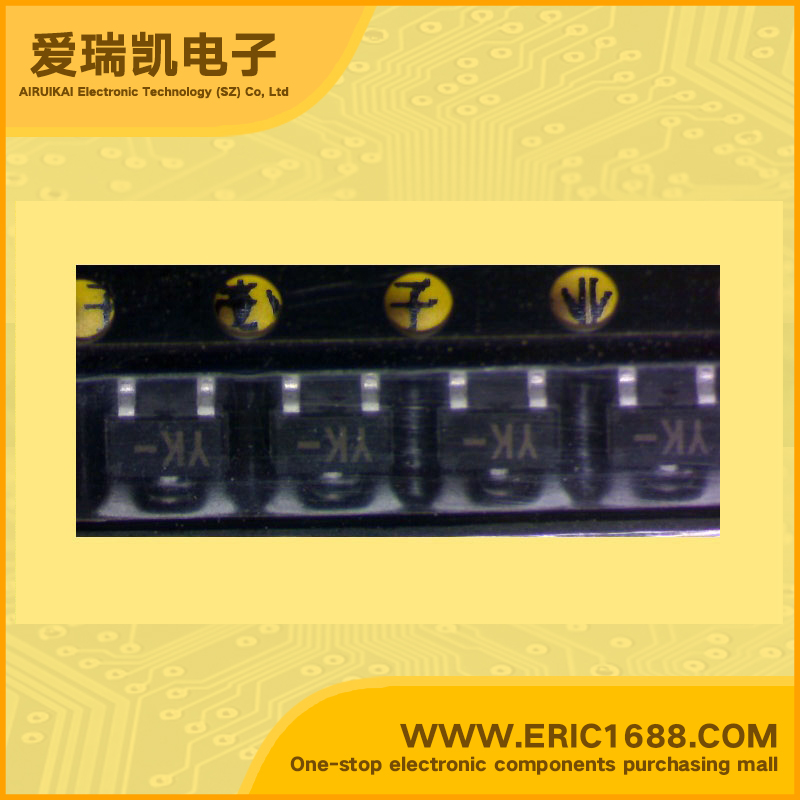

2SC5218YK-TR NPN Transistors(BJT) 15V 50mA 9Ghz 50~250 SOT-23/SC-59/MPAK marking YK VHF/UHF wide band amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 9V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 9Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~250 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN Epitaxial Application VHF / UHF wide band amplifier Features • High gain bandwidth product fT= 9 GHz typ • High gain, low noise figure PG = 13.0 dB typ, NF = 1.2 dB typ at f = 900 MHz |
| 描述与应用 | NPN硅外延 应用 VHF/ UHF宽频带放大器 特点 •高增益带宽积 FT =9 GHz的典型 •高增益，低噪声系数 PG= 13.0 dB（典型值），NF= 1.2 dB（典型值）在f=900兆赫 |
