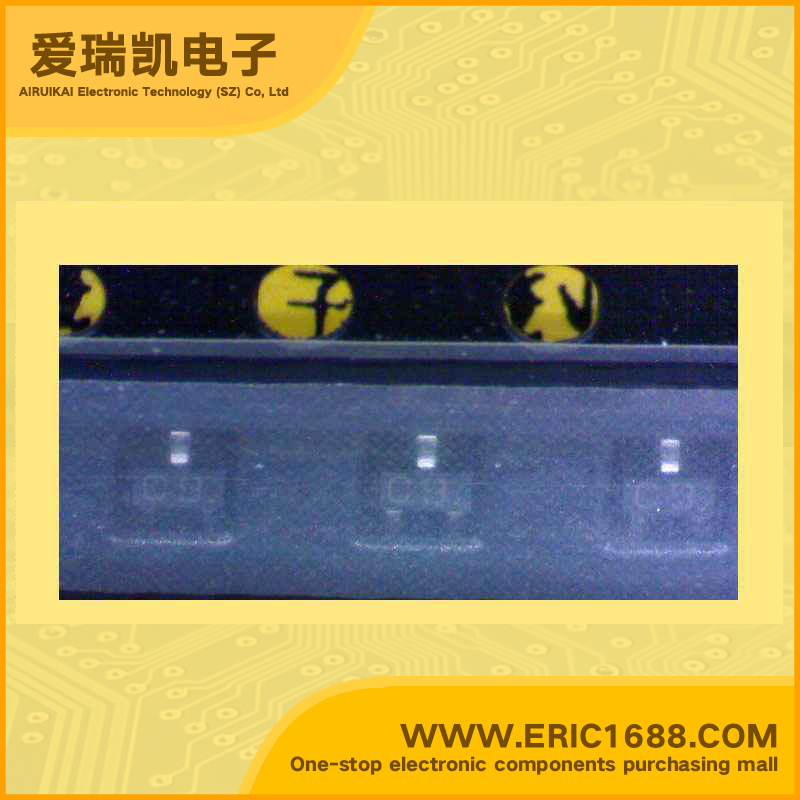

2SC5231C9-TL NPN Transistors(BJT) 20V 70mA 7GHz 135~270 SOT-523/SMCP marking C9 VHL/UHF widebandlow noise amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 10V |
| 集电极连续输出电流IC Collector Current(IC) | 70mA |
| 截止频率fT Transtion Frequency(fT) | 7GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 135~270 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 100mW/0.1W |
| Description & Applications | Silicon NPN epitaxial planar type VHL to UHF wide band low noise amp application Features • High gain |S21e|*2=12db • Low noise NF=1.0db • high cutoff frequency fT=7GHZ |
| 描述与应用 | NPN硅外延平面型 VHL UHF宽带低噪声放大器的应用 特点 •高增益| S21E|* 2 =12分贝 •低噪声NF=1.0分贝。 •高截止频率fT=7GHZ |
