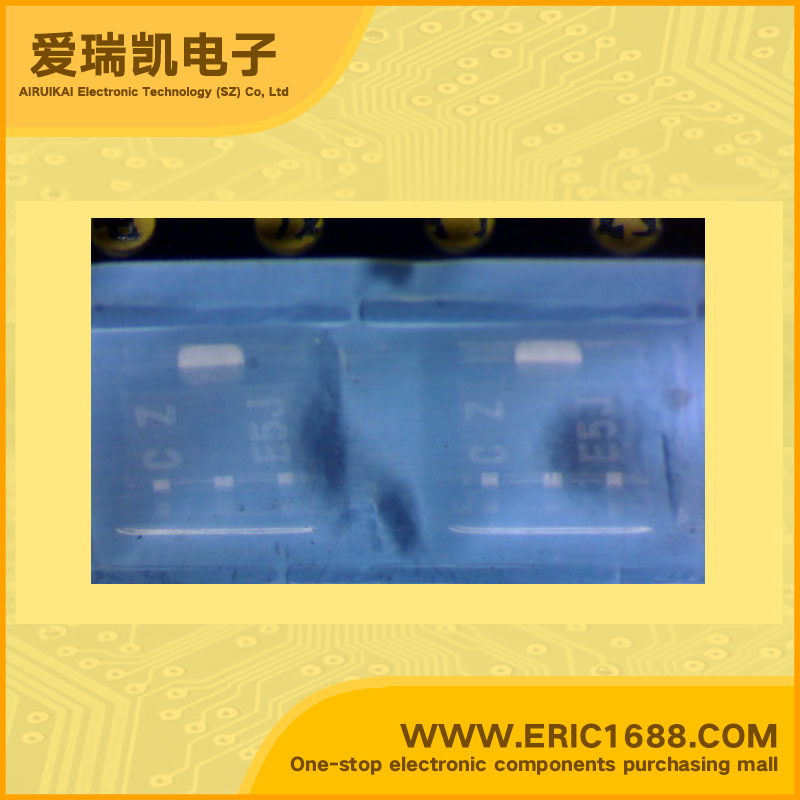

2SC5247 NPN Transistors(BJT) 15V 50mA 13.5GHz 50~160 SOT-89/PCP marking CZ VHF/UHFlow noise wide band amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
8V
集电极连续输出电流IC
Collector Current(IC)
50mA
截止频率fT
Transtion Frequency(fT)
13.5GHz
直流电流增益hFE
DC Current Gain(hFE)
50~160
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
80mW
Description & ApplicationsSilicon NPN epitaxial planar type VHL to UHF wide band amplifier ■ Features • High gain bandwidth product fT=13.5GHZ • high gain , Low noise figure PG=17db,NF=1.2db
描述与应用vHF,UHF低噪声宽波段 放大器的应用 特点  ·低噪音:NF=1.0分贝典型值(F =1GHz的)。  ·高增益:S21E| *2    =12分贝典型值(F =1GHz的)。  ·高截止频率:FT =7GHz的典型。  ·超小,超薄扁平引线封装。 (1.4毫米×0.8毫米×0.6毫米)
