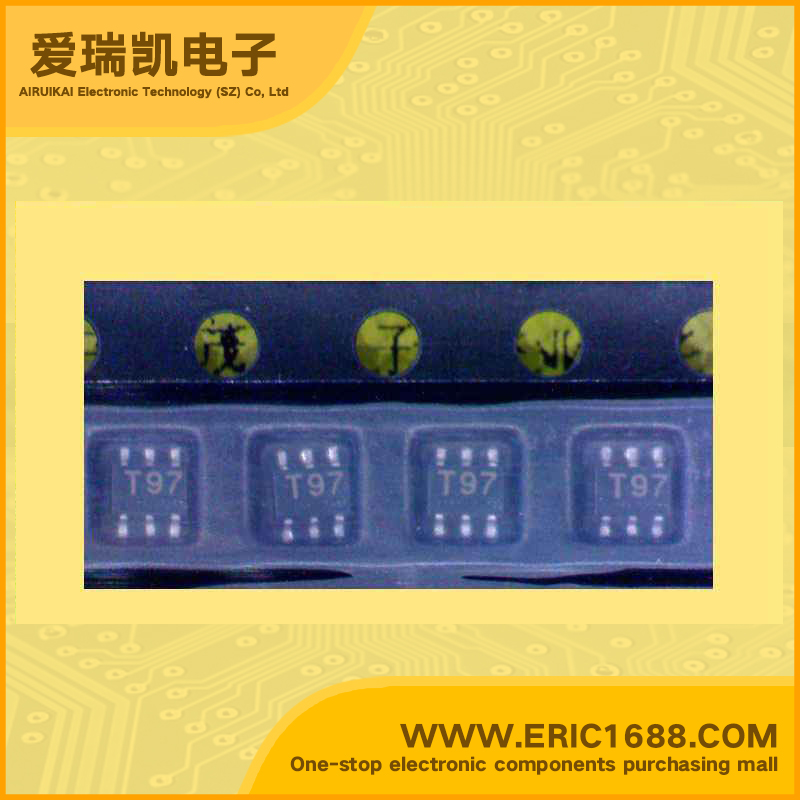

2SC5409 NPN Transistors(BJT) 5V 30mA 16GHz 70~140 SOT-363/SC70-6 marking T97 microwave high gain amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 5V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 3V |
| 集电极连续输出电流IC Collector Current(IC) | 30mA |
| 截止频率fT Transtion Frequency(fT) | 16GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 70~140 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 90mW |
| Description & Applications | NPN EPITAXIAL SILICON TRANSISTOR FOR MICROWAVE HIGH-GAIN AMPLIFICATION FEATURE • High fT 16 GHz TYP. • High gain |S21e|*2= 14 dB TYP. @f = 2 GHz, VCE = 2 V, IC = 20 mA • NF = 1.1 dB, @f = 2 GHz VCE = 2 V, IC = 3 mA • 6-pin Small Mini Mold Package |
| 描述与应用 | NPN外延硅晶体管 微波高增益放大 特写 •高FT 16 GHz的TYP。 •高增益 | S21E|* 2 =14 dB典型值。 @ F =2 GHz时，VCE= 2 V，IC=20毫安 •NF= 1.1 dB时，@ F =2 GHz的VCE= 2 V，IC =3毫安 •6针小型微型模具包装 |
