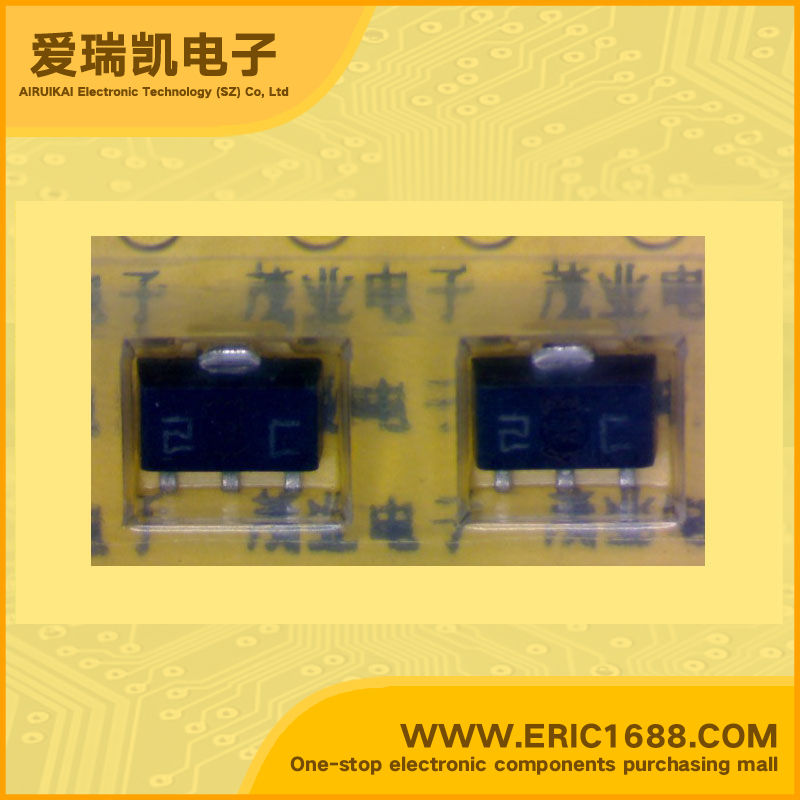

2SC5713 NPN Transistors(BJT) 20V 4A 400~1000 <150mV/0.15V SOT-89/PW-Mini marking 2C high current switch DC-DCswitch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 10V |
| 集电极连续输出电流IC Collector Current(IC) | 4A |
| 截止频率fT Transtion Frequency(fT) | |
| 直流电流增益hFE DC Current Gain(hFE) | 400~1000 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | <150mV/0.15V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | Silicon NPN epitaxial planar type High-Speed Switching Applications DC-DC Converter Applications Strobe Applications • High DC current gain: hFE = 400 to 1000 (IC = 0.5 A) • Low collector-emitter saturation voltage: VCE (sat) = 0.15 V (max) • High-speed switching: tf = 50 ns (typ. |
| 描述与应用 | NPN硅外延平面型 高速开关应用 DC-DC转换器应用 频闪应用 •高直流电流增益：HFE=400〜1000（IC= 0.5 A） •低集电极 - 发射极饱和电压VCE（饱和）= 0.15 V（最大值） •高速开关：TF =50 ns（典型值 |
