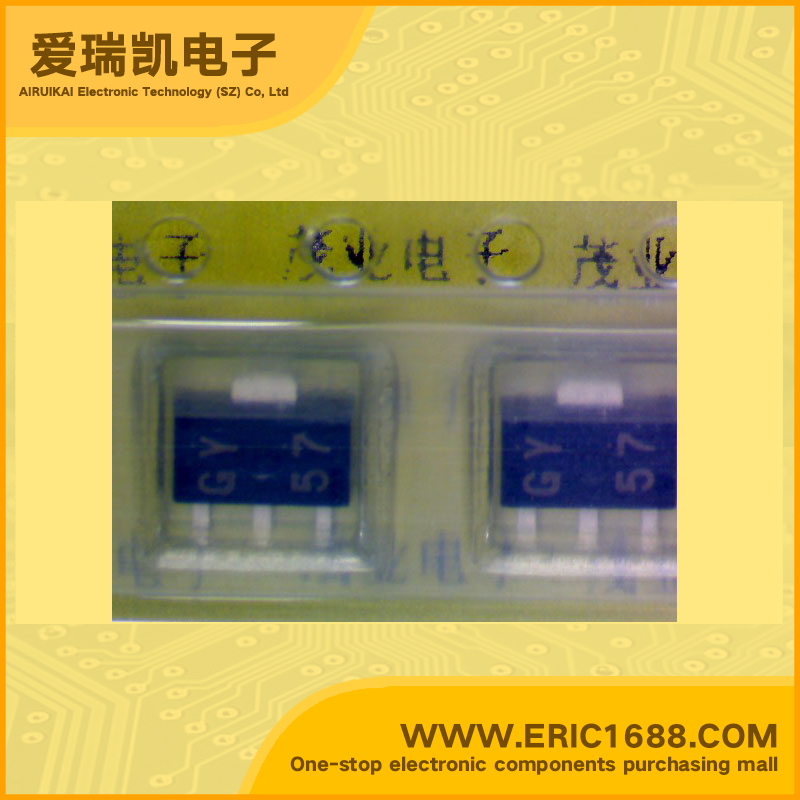

2SD2403 NPN Transistors(BJT) Vcbo= 80V Vceo=60V Ic= 3A ft=130MHz hfe=160~320 Vce=150mV/0.15V SOT-89 marking GY low frequency power amplifier medium speed switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
60V |
| 集电极连续输出电流IC Collector Current(IC) |
3A |
| 截止频率fT Transtion Frequency(fT) |
130MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
160~320 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
150mV/0.15V |
| 耗散功率Pc Power Dissipation |
2W |
| Description & Applications | NPN SILICON EPITAXIAL TRANSISTOR FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING FEATURES • High current capacitance • Low collector saturation voltage • Complementary transistor with 2SB1572 |
| 描述与应用 | NPN硅外延晶体管低频功率放大器和中速切换 特点 •高电流电容 •低集电极饱和电压 •互补晶体管2SB1572 |
