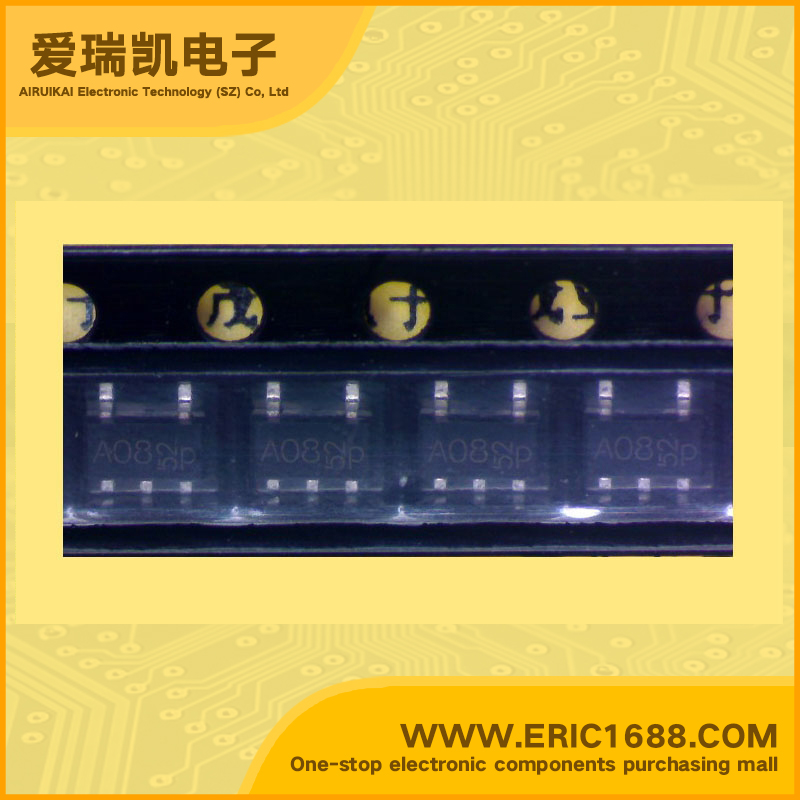

Integrated Circuit(IC) AND gate 74AHC1G08GV SOT-153/SC-74A marking A08

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V~1.65V
高逻辑电平
Logic Level - High
1.5V~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.9ns @ 4.5V ~ 5.5V,50pF
Description & Applications2-input AND gate;FEATURES • Symmetrical output impedance • High noise immunity • ESD protection: – HBM EIA/JESD22-A114-A exceeds 2000 V – MM EIA/JESD22-A115-A exceeds 200 V – CDM EIA/JESD22-C101 exceeds 1000 V. • Low power dissipation • Balanced propagation delays • Very small 5-pin package • Output capability: standard • Specified from −40 to +125 °C
描述与应用2输入与门;特性 •对称的输出阻抗 •高抗干扰 •ESD保护: - HBM EIA/JESD22-A114-A超过2000 V - MM EIA/JESD22-A115-A超过200 V - CDM EIA/JESD22-C101超过1000 V。 •低功耗 •平衡传输延迟 •非常小的5引脚封装 •输出能力:标准 •额定温度范围从-40至+125°C
