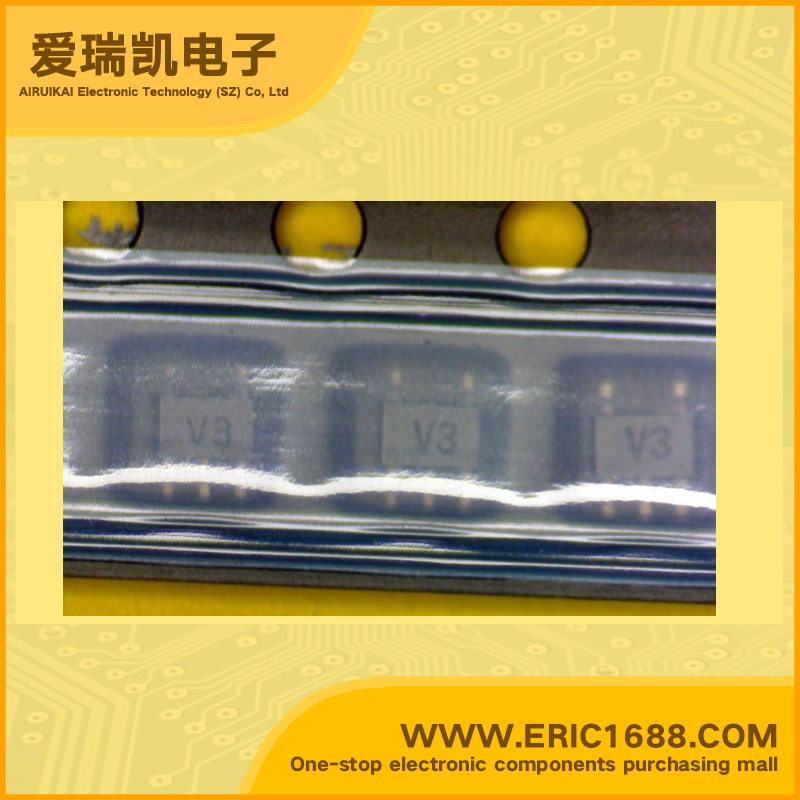

Integrated Circuit（IC） inverter 74V1G04CTR SOT-353/SC70-5/SC-88A/SOT323-5 marking V3
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.3V~1.1V |
| 高逻辑电平 Logic Level - High | 1.7V~4.4V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.5ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | SINGLE INVERTER;FEATURES HIGH SPEED: tPD = 3.8ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.) POWER DOWN PROTECTION ON INPUT SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN) at VCC = 4.5V BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V IMPROVED LATCH-UP IMMUNITY |
| 描述与应用 | 单逆变器;特性 高速：TPD =3.8ns电源（VCC = 5V时典型值） 低功耗： ICC=1μA（最大值）在TA = 25°C 高抗干扰性： VNIH= VNIL VCC=28％（最小） 掉电保护对输入 对称的输出阻抗： | IOH= IOL = VCC= 4.5V8毫安（MIN） 平衡传输时延： TPLH≅TPHL 工作电压范围： VCC（OPR）=2V到5.5V 改进的锁存-抗扰度 |
