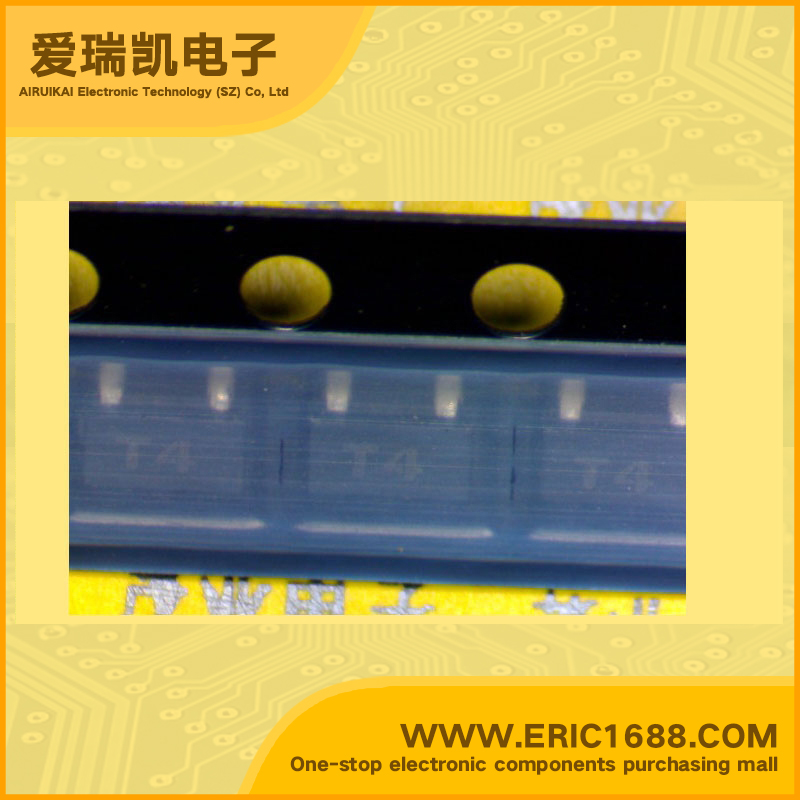

Integrated Circuit（IC） AND gate 74V1T08STR SOT-153/SOT23-5/SC-74A marking T4
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.3V~1.1V |
| 高逻辑电平 Logic Level - High | 1.7V~4.4V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.7ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | SINGLE 2-INPUT AND GATE;Features HIGH SPEED: tPD = 4.7ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C COMPATIBLE WITH TTL OUTPUTS: VIH = 2V (MIN), VIL = 0.8V (MAX) POWER DOWN PROTECTION ON INPUTS SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN) at VCC = 4.5V BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC(OPR) = 4.5V to 5.5V IMPROVED LATCH-UP IMMUNITY |
| 描述与应用 | 单路双输入与门;特性 高速：TPD =4.7ns电源（VCC = 5V时典型值） 低功耗： ICC=1μA（最大值）在TA = 25°C 兼容TTL输出： VIH=2V（MIN），VIL = 0.8V（最大） 掉电保护的投入 对称的输出阻抗： | IOH= IOL = VCC= 4.5V8毫安（MIN） 平衡传输时延： TPLH≅TPHL 工作电压范围： VCC（OPR）= 4.5V至5.5V 改进的锁存-抗扰度 |
