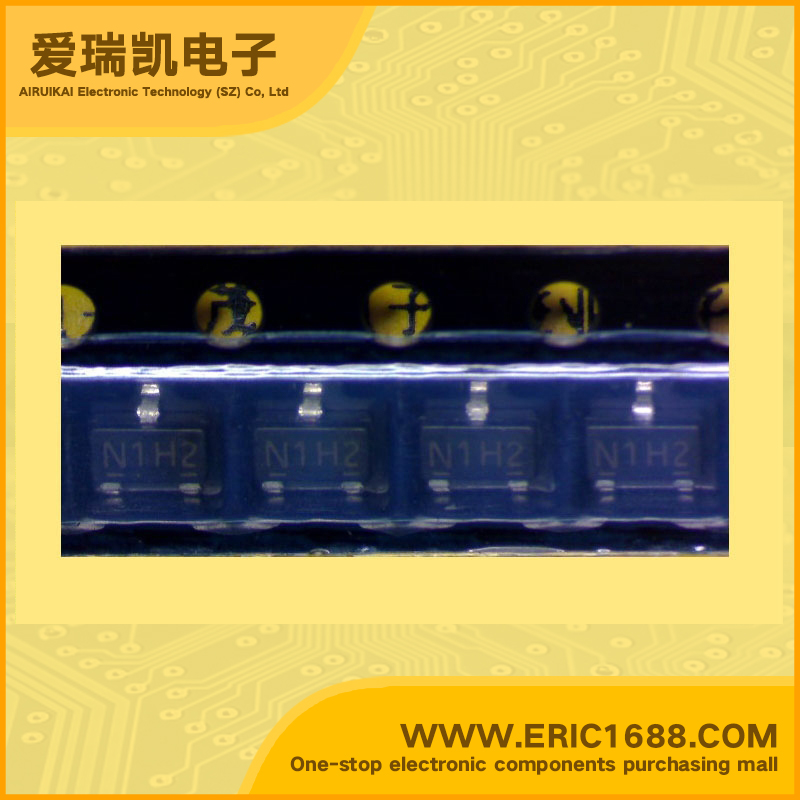

AP2301GN MOSFET P-Channel -20V -2.6A 0.13ohm SOT-23 marking N1 fast switch 2.5V drive

Model：AP2301GN
Mark / screen / code / typing：N1
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	12V
最大漏极电流Id Drain Current	-2.6A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.13Ω @-2.8A,-5V
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.5V
耗散功率Pd Power Dissipation	1.38W
Description & Applications	Simple Drive Requirement 2.5V Gate Drive Capability Fast Switching
描述与应用	简单的驱动要求 2.5V栅极驱动能力快速切换
