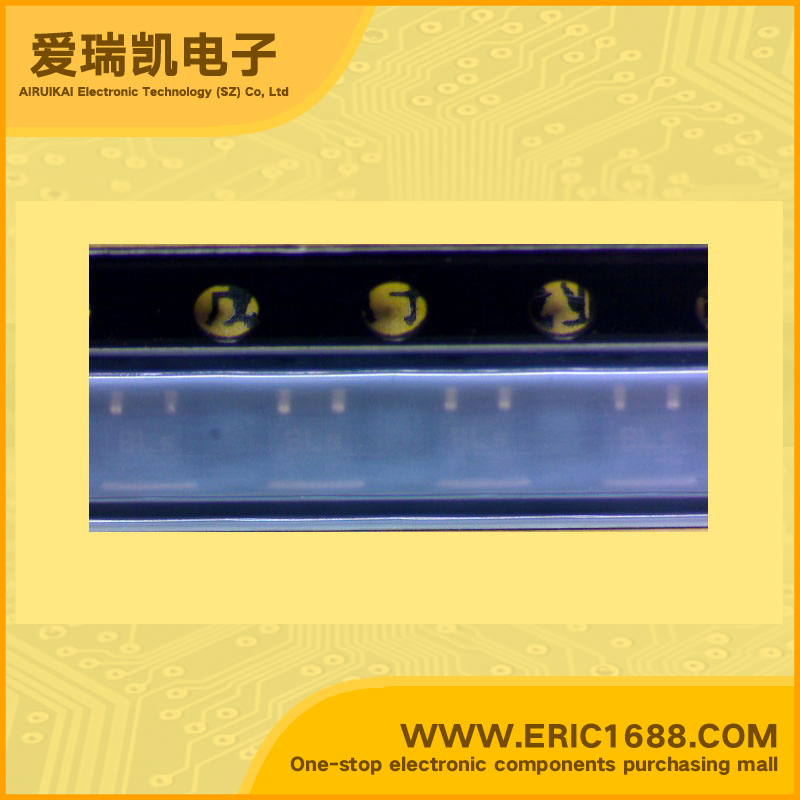

RF amplifier BGA420 SOT-343 marking BLP
| 频率 Frequency | 0Hz~3GHz |
| P1dB | -2.5dBm |
| 增益 Gain | 13dB |
| 噪声系数 Noise Figure | 2.3dB |
| RF 类型 RF Type | 通用 General Purpose |
| 电源电压 Voltage - Supply | 3V~6V |
| 电源电流 Current - Supply | 6.7mA |
| 测试频率 Test Frequency | 1GHz |
| Description & Applications | FEATURES • Si-MMIC-Amplifier in SIEGET 25 Technology • Cascadable 50 -gain block • Unconditionally stable • Gain |S21|2 = 13 dB at 1.8 GHz IP3out= +13 dBm at 1.8 GHz (VD = 3 V, ID = typ. 6.7 mA) • Noise figure NF = 2.3 dB at 1.8 GHz •Reverse isolation > 28 dB and return loss IN / OUT > 12 dB at 1.8 GHz |
| 描述与应用 | 特点 •硅MMIC放大器在SIEGET25技术 •级联50增益块 •无条件稳定 •增益| S21|2=13 dB，在1.8 GHz的IP3out=+13 dBm范围在1.8 GHz（VD = ID=3 V，典型值6.7毫安） •噪声系数NF= 2.3 dB，在1.8 GHz的 •反向隔离度>28 dB和IN / OUT> 12 dB的回波损耗在1.8 GHz |
