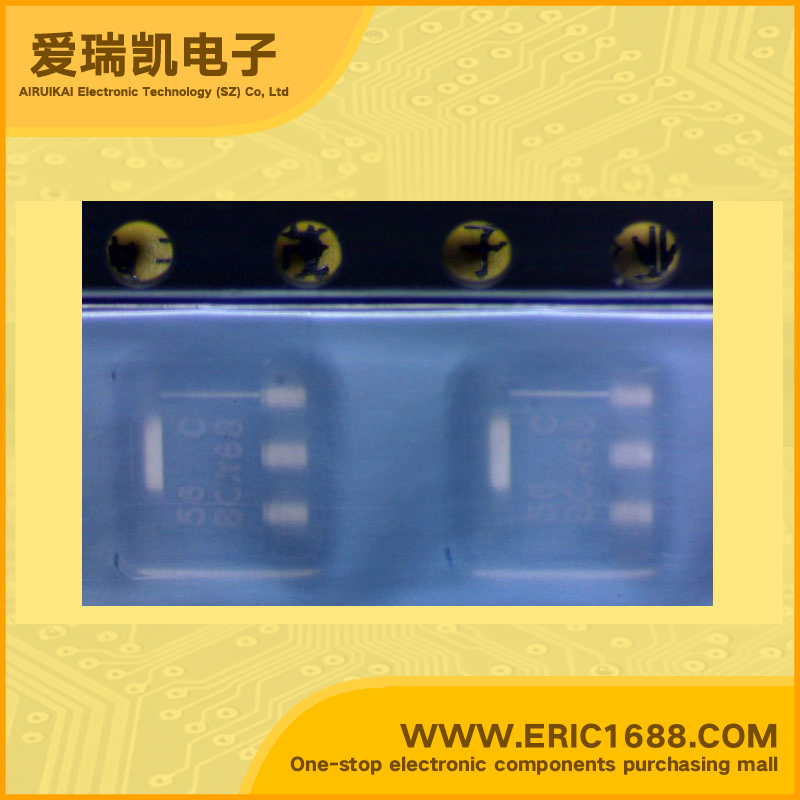

CBCX68TR NPN Transistors(BJT) 25V 1A 65MHz 85~375 500mV/0.5V SOT-89 marking CBCX68 small signal
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 25V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 65MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 85~375 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 1.2W |
| Description & Applications | SILICON COMPLEMENTARY SMALL SIGNAL TRANSISTORS The CENTRAL SEMICONDUCTOR CBCX68 silicon transistor manufactured by epitaxial planar process, epoxy molded in a surface mount package, designed for applications requiring high current capability. complementary types CBCX69 |
| 描述与应用 | 硅互补 小信号晶体管 该中央半导体CBCX68的硅晶体管由外延平面工艺制造，环氧树脂模压在一个表面贴装封装，专为需要高电流能力的应用。 互补类型CBCX69 |
