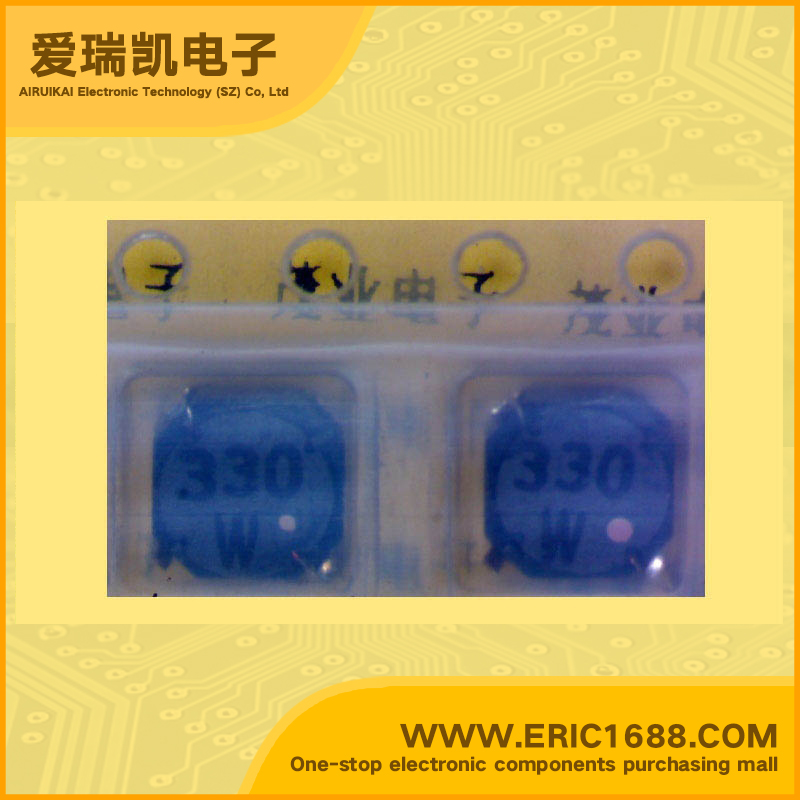

power conductor CLS4D11-330 33uH 4M-330
| Q值 Q Value | |
| 电感值 Inductance | 33uH |
| 误差 Tolerance | ± 30% |
| 额定电流 Current Rating | 300mA |
| 饱和电流 Current - Saturation | |
| DC电阻DCR DC Resistance (DCR) | 1.1Ω/Ohm |
| Description & Applications | ◆ Product Description ・4.9×4.9mm Max.(L×W), 1.2mm Max. Height. ・4 Terminal pins’ type gives a flexible design as inductors or transformers (SEPIC,ZETA circuit). ・Custom design is available. ◆ Feature ・Max. Operating frequency 1MHz, Max. ・Ideally used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC Converter inductors, specially suitable for White LED drive. ・It is possible to output high voltage and get sufficient accuracy which is hard to obtain with an ordinary inductor. ・RoHS Compliance |
| 描述与应用 | ◆产品描述 ·4.9×4.9毫米最大。（长×宽），1.2mm最大。身高。 ·4终端pins'类型给出了一个灵活的设计，电感或变压器 （SEPIC，ZETA电路）。 ·自定义设计。 ◆特征 ·最大。工作频率为1MHz，最大。 ·Ideally用于便携式设备，如手机，DSC/ DVC，MP3，PDA等作为DC-DC 转换器电感器，特别适用于白光LED驱动器。 ·可以输出高电压，并获得足够的精确度是难以取得与 普通电感。 ·RoHS合规 |
