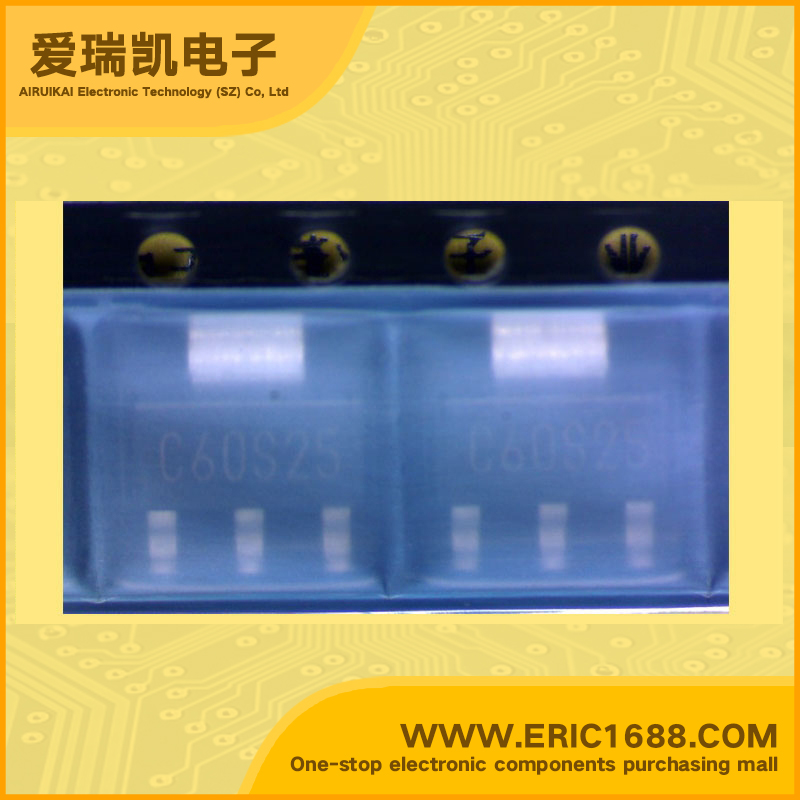

CM2860SIM223TR LDO Voltage Regulator 3.3V 600mV/0.6V SOT-223 marking C6 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 7V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 600mA/0.6A |
| 最大压降VDO Voltage - Dropout | 600mV/0.6V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 625mW/0.625W |
| Description & Applications | 600mA CMOS LDO ；•Very Low Dropout Voltage •Low Current Consumption: Typ. 30µA, Max. 35µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 6000mA Output •Input Range of 2.6V to 7.0V •Thermal Shutdown •Current Limiting •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient |
| 描述与应用 | 600mA的CMOS LDO;•非常低压差电压 •低电流消耗：典型。 30μA，最大。 35μA •高精度输出电压：+/ - 1.5％ •保证600mA输出 •输入电压范围为2.6V至7.0V •热关断 •电流限制 •工厂Pre-set输出电压 •短路电流折返 •低温度系数 |
