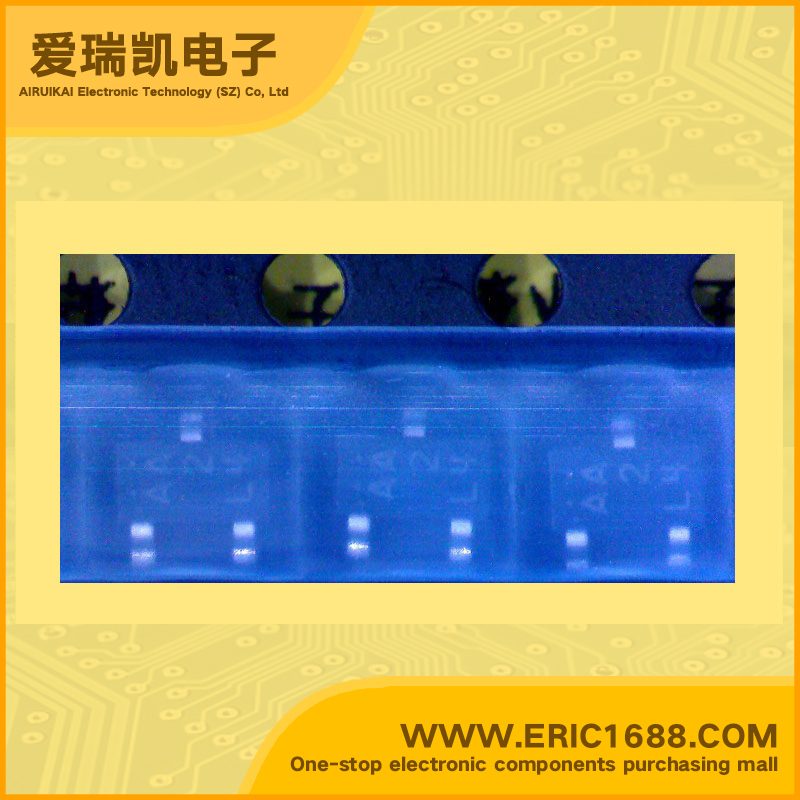

CPH3101-TL PNP transistors（BJT） -30V -2A 150MHz 200~400 -180mV/-0.18V SOT-23/CP marking AA DC/ DCconvertor/relay driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流IC Collector Current(IC) | -2A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -180mV/-0.18V |
| 耗散功率Pc PoWer Dissipation | 900mW/0.9W |
| Description & Applications | DC/DC Converter Applications Applications · Relay drivers, lamp drivers, motor drivers, strobes. Features · Adoption of FBET and MBIT processes. · High current capacitance. · Low collector-to-emitter saturation voltage. · High-speed switching. · Ultrasmall-sized package permitting applied sets to be made small and slim. · High allowable power dissipation. |
| 描述与应用 | DC/ DC转换器应用 应用 ·继电器驱动器，灯驱动器，电机驱动器，闪光灯。 特点 ·高电流容量。 ·低集电极 - 发射极饱和电压。 ·高速开关。 ·超小尺寸封装允许应用设置小型和超薄。 ·高允许功耗。 |
