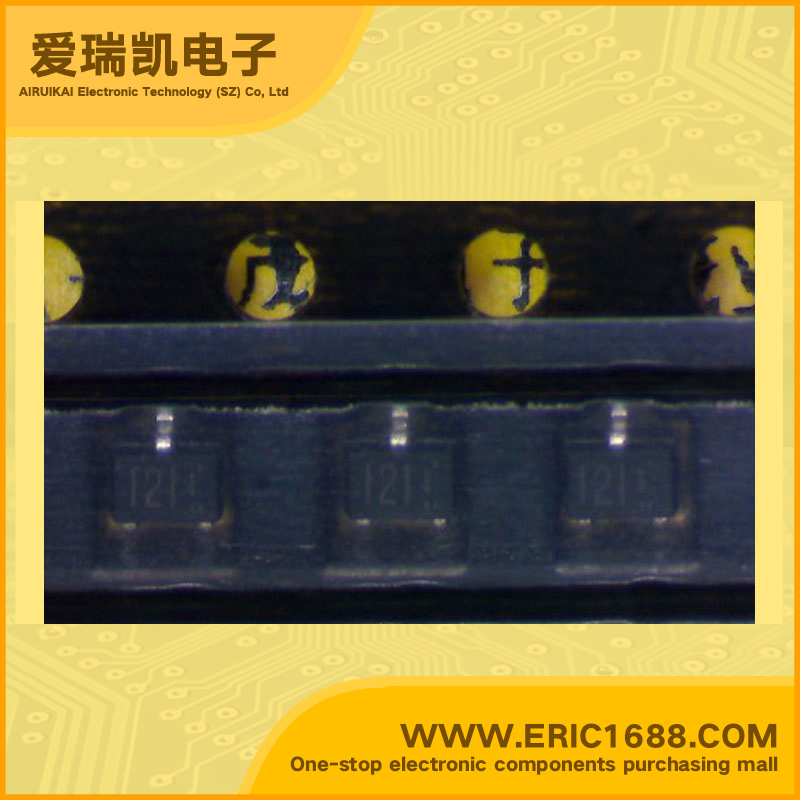

DTC113ZUA NPN Bipolar Digital Transistor (BRT) 100mA/0.1A 1k 10k SOT-323/SC-70/UMT3 marking 121
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 1KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.1 |
| 直流电流增益hFE DC Current Gain(hFE) | 33 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Features 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) Each bias resistor is a thin-film resistor. Since they are completely insulated, the input can be negatively biased. The insulation also eliminates most of the parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy |
| 描述与应用 | 特性 1）内置启用偏置电阻器的逆变器电路的配置，而无需连接外部输入电阻（见等效电路）。 2）每个偏置电阻器是一种薄膜电阻。输入，因为它们是完全绝缘的，可以是负偏置。的绝缘也消除了大部分的寄生效应。 3）只有开/关条件需要设置操作，使装置设计容易 |
