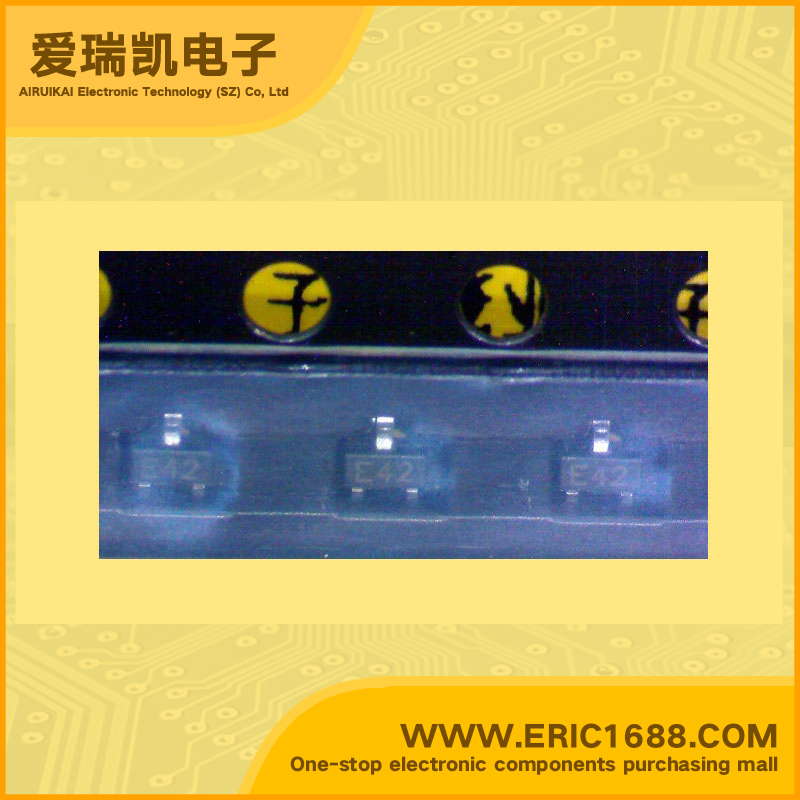

DTC123JE NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 2.2k 47k sot-523/EMT3 marking E42
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.47 |
| 直流电流增益hFE DC Current Gain(hFE) | 80 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.15W/150mW |
| Description & Applications | Features 1）Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making device design easy 5）Complementary PNP Types:DTA123J series 6)Lead free/RoHS compliant |
| 描述与应用 | 特性 1）内置偏置电阻 2）内置启用偏置电阻器的配置， 逆变电路没有连接外部输入电阻（见等效电路）。 3）偏置电阻组成的薄膜电阻完全隔离，允许负偏置输入。他们也有优势，几乎完全消除了寄生效应。 4）只有开/关条件需要设置操作，使装置设计容易 5）互补PNP类型：DTA123J 6）无铅/ RoHS兼容 |
