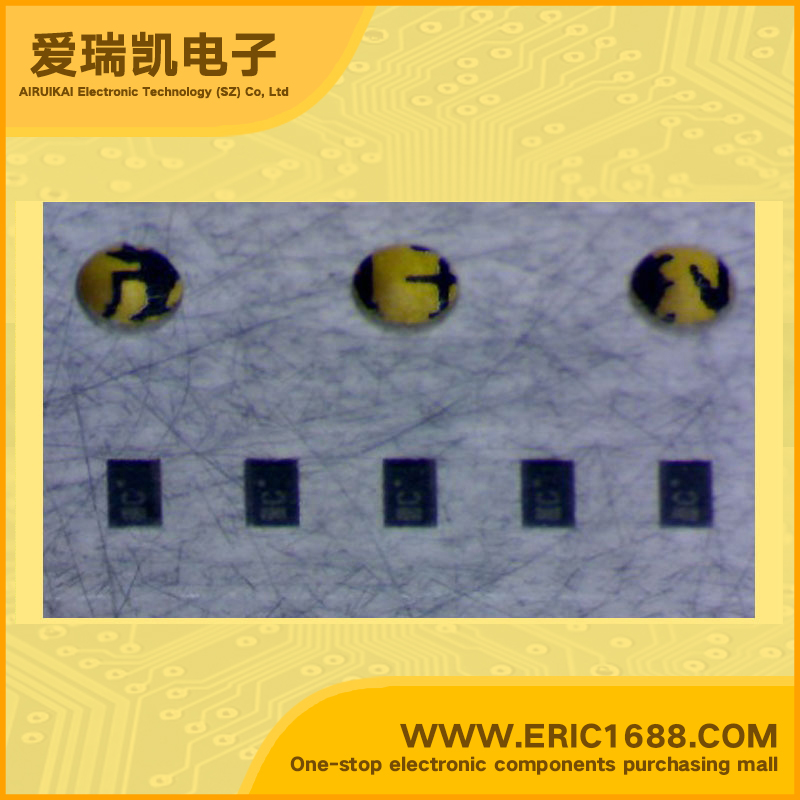

EC3H03B-TL NPN Transistors(BJT) 20V 100mA/0.1A 7.5Ghz 100~180 ECSP1006-3 marking MC high frequency，ultra high frequency widebandlow noise amplifier and oscillator
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 7.5Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~180 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 100mW/0.1W |
| Description & Applications | VHF to UHF Wide-Band Low-Noise Amplifier and OSC Applications Low noise : NF=1.1dB typ (f=1GHz). High gain High cut-off frequency : fT=7.5GHz typ. Ultraminiature (1006 size) and thin (0.5mm) leadless package. |
| 描述与应用 | 高频，超高频宽带低噪声放大器和振荡应用 低噪音 高增益 高截止频率：FT =的7.5GHz 超小型（1006大小）和薄（0.5毫米） 无铅封装 |
