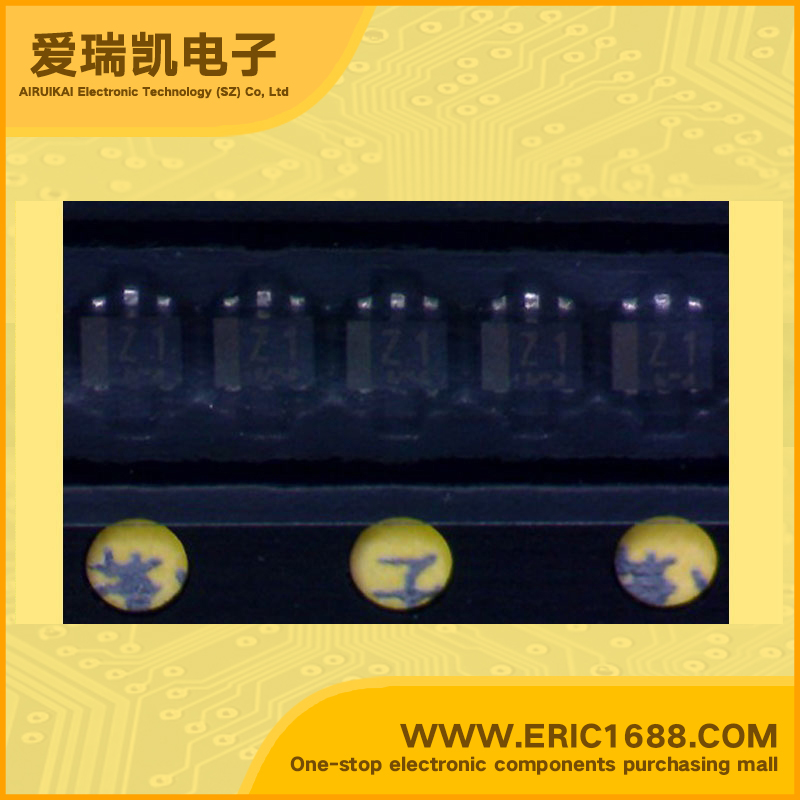

EMZ1 NPN+PNP Complex Bipolar Transistor 60V/-60V 150mA/-150mA 120~560 SOT-563/EMT6 marking Z1 switch and digital circuit application
| Collector-Base Voltage(VCBO) Q1/Q2 | 60V/-60V |
| Collector-Emitter Voltage(VCEO) Q1/Q2 | 50V/-50V |
| Collector Current(IC) Q1/Q2 | 150mA/-150mA |
| Transtion Frequency(fT) Q1/Q2 | 180MHz/140MHz |
| DC Current Gain(hFE) Q1/Q2 | 120~560/120~560 |
| VCE（sat） Collector-Emitter Saturation Voltage Q1/Q2 | 400mV/-500mV |
| Power Dissipation Q1/Q2 | 150mW/0.15W |
| Description & Applications | Features • General purpose transistor (dual transistors) • Both a 2SA1037AK chip and 2SC2412K chip in a EMT or UMT or SMT package. • Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines. • Transistor elements are independent, eliminating interference. • Mounting cost and area can be cut in half. |
| 描述与应用 | 特点 •通用晶体管（双晶体管） •一个2SA1037AK芯片和2SC2412K芯片在EMT或UMT或SMT封装。 •安装可能与EMT3或UMT3或SMT3自动安装机器。 •晶体管元素是独立的，消除干扰。 •安装成本和面积可减少一半。 |
